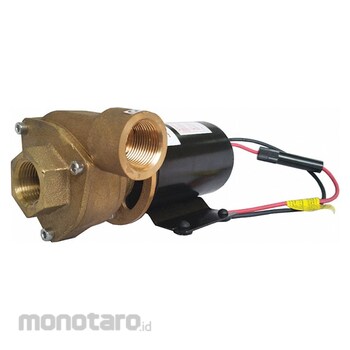

DAYTON Marine Straight Centrifugal Pump
#Grup produk P109553274
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp5.999.900 - Rp9.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Compatible Discharge Pipe Size (inch) | 3/4 |
| Compatible Intake Pipe Size (inch) | 3/4 |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty cycle | Intermittent |
| Horsepower (HP) | 1/8 |
| Impeller Material | Brass |
| Maximum Flow Rate @ 10ft of Head (gpm) | 8 |
| Maximum Media Temperature (°F) | 180 |
| Maximum Motor Ambient Temperature (°F) | 104 |
| Maximum RPM | 5000 |
| Minimum Media Temperature (°F) | 40 |
| Motor Enclosure | Totally Enclosed |
| Motor Type | DC |
| Pump Housing Material | Brass |
| Seal Material | Carbon; Ceramic; Viton |
| Solid Diameter (Maximum) (inch) | 0.13 |
| Wetted Material | Brass; Buna-N; Carbon; Ceramic; Stainless Steel; Viton |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Marine straight centrifugal pumps have an intake connection in-line with the impeller's eye and shaft. These pumps circulate and transfer liquids in offshore applications.
Feature
Marine Centrifugal Pump Pump Housing Material Brass Horsepower 1/8 hp Nameplate Voltage 24V DC Maximum Feet of Head 17 ft Compatible Intake Pipe Size 3/4 in Intake Type NPT Compatible Discharge Pipe Size 3/4 in Discharge Type NPT Motor Enclosure Totally Enclosed Maximum Flow Rate 13 gpm Flow Rate @ 5 ft of Head (Maximum) 11 gpm Flow Rate @ 10 ft of Head (Maximum) 8 gpm Flow Rate @ 15 ft of Head (Maximum) 4 gpm Seal Material Carbon Ceramic Viton Best Efficiency Head 15 ftDokumentasi Produk
