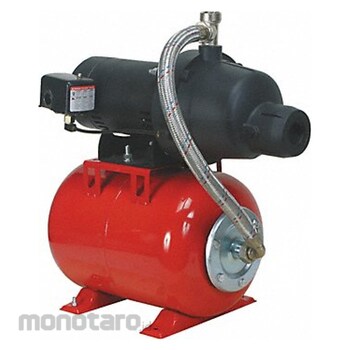

DAYTON Jet Pump System
#Grup produk P109553159
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp13.999.900 - Rp20.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Discharge (inch) | 1 NPT |
|---|---|
| Inlet (inch) | 1-1/4 NPT |
| Rated Voltage (V) | 115/230 AC |
| Tank Bladder Pressure (psi) | 28 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Shallow-well jet pump systems eliminate the need to connect to a municipal water source and come with precharged pressure tanks that allow water to flow consistently at a desired pressure. They supply water from wells up to 25-ft. deep and are mounted above ground for maintenance and repair compared to submersible well pumps that are installed in the well and need to be removed from the well for inspection. Pumps are not subject to pump twisting found in submersible pumps that causes them to strike against and damage the sides of the well casing. They are connected to an ejector, pressure tank, and control panel to automatically supply water as needed.
Feature
Shallow Well Jet Pump System HP 3/4 hp Rated Voltage 115/230V AC Amps 10.8/5.5 Flow Rate @ 10 ft Lift @ 30 PSI 10.5 gpm Flow Rate @ 10 ft Lift @ 40 PSI 5.6 gpm Flow Rate @ 10 ft Lift @ 50 PSI 2.3 gpm Max Suction Lift 25 ft Tank Capacity 6.0 gal Tank Bladder Pressure 28 psi Shut Off Pressure 63 psi Max Inlet Pressure 75 psi Inlet 1-1/4 in NPT Discharge 1 in NPT Overall Length 25 Overall Width 25 Overall Height 28 Includes Pump and TankDokumentasi Produk
