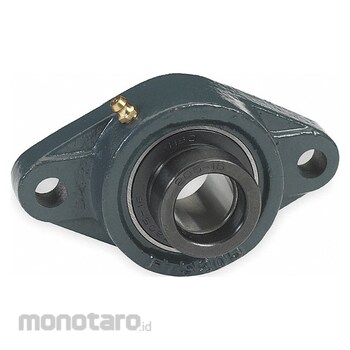

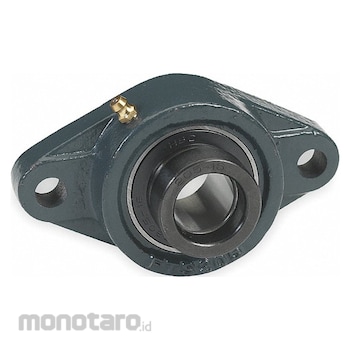

DAYTON Flange-Mount Rolling-Element Bearing
#Grup produk P109552752
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 31171504 |
|---|---|
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 52100 |
| Bore Type | Cylindrical |
| Closure | Single Sealed |
| Expansion Type | Fixed |
| Features | Nylon Patch 3A Set Screws; Relubricatable Unit with Anti-rotation Pin; Self Alignment Capabilities; Serviceability of Assemblies |
| For Environment | Highly Dusty and Dirty |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Material Grade | High Grade Cast Iron |
| Includes | (2) Set Screws; Oiler Cap |
| Includes Mounting Hardware | Yes |
| Load Direction | Radial |
| Lubricant Material | Chevron SRI 2; NLGI #2 Equivalent |
| Lubrication Openings | Oiler Hole |
| Maximum Misalignment Angle (°) | 1.5 |
| Maximum Temperature (°F) | 200 |
| Minimum Temperature (°F) | -20 |
| Resistance Properties | Wear Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Buna-N Rubber |
| Seal Type | Shroud Contact Seal with Rubber Lip and Metal Shield |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Eccentric Collar |
| Split Housing | Not Split |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These general purpose flange-mount ball bearings have a smaller contact surface with the bearing raceway which reduces friction. Low friction allows ball bearings to run at higher speeds but with a lower load capacity than roller bearings.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
2 Bolt Flange Bearing Bearing Insert Material Alloy Steel Bearing Insert Type Radial Ball Bore Diameter 1/2 in Bore Type Cylindrical Closure Double Sealed Housing Material Zinc Die Cast Housing Type Rhombus Lubricant Material NLGI #2 Equivalent Maximum Speed 6 000 RPM Maximum Temperature 200 Degrees F Minimum Temperature -30 Degrees F Mount Hole Center-to-Center Height 2.5 in Number of Mount Holes 2 Overall Height 1 1/16 in Overall Length 3.25 in Overall Width 2 inDokumentasi Produk
