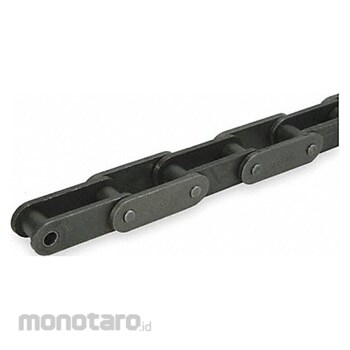

DAYTON Conveyor Roller Chain
#Grup produk P109552150
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 31151603 |
|---|---|
| Application | Transport Applications Such as Material Handling, Packaging, Bottlers and More |
| Chain Number | C2060H |
| Chain Overall Width (inch) | 1.15 |
| Features | Heat-Treated for Higher Tensile Strength |
| Finish | Painted |
| Heavy Series | Yes |
| Inside Width (inch) | 0.5 |
| Manufacturer Part Number | 2YDY3 |
| Material | Steel |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°F) | 10 |
| Number of Strands | 1 |
| Overall Length (ft) | 10 |
| Pin Hole Diameter (inch) | 0.233 |
| Pin Outside Diameter (inch) | 0.233 |
| Pitch (inch) | 1-1/2 |
| Plate Height (inch) | 0.683 |
| Plate Thickness (inch) | 0.125 |
| Roller Diameter (inch) | 15/32 |
| Series | Heavy Conveyor |
| Tensile Strength (lbf) | 7227 |
| Working Load Limit (lbs) | 1032 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard conveyor roller chains have a single strand for general purpose conveying applications that require durable chains in non-corrosive environments.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Roller Chain Overall Length 10 ft Material Steel Chain Number C2040 Chain Overall Width 0.7 in Roller Diameter 5/16 in Tensile Strength 3 125 lbf Pitch 1 in Application Transport Applications Such as Material Handling Packaging Bottlers and More Number of Strands 1 Inside Width 0.312 in Series Conveyor Working Load Limit 534 lb Features Heat-Treated for Higher Tensile Strength Finish Painted Heavy Series No Maximum Operating Temperature 150 Degrees FDokumentasi Produk
