DAYTON Convertible Well Jet Pump
#Grup produk P109552132
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp10.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 20141301 |
|---|---|
| Body Material | Thermoplastic |
| Discharge (inch) | 1 NPT |
| Ejector Included | No |
| Includes | Pressure Gauge |
| Inlet (inch) | 1-1/4 NPT |
| Max. Inlet Pressure | 75 |
| Motor Enclosure | ODP |
| Overall Height (inch) | 12 |
| Overall Width (inch) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

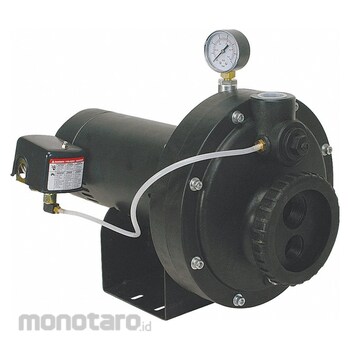

These convertible well jet pumps are for use in shallow wells (up to 25-ft. deep) or deep wells (greater than 25-ft. deep) and eliminate the need to connect to a municipal water source. They are mounted above ground for repair and maintenance compared to submersible well pumps that are installed in the well and need to be removed from the well for inspection. Jet pumps are not subject to pump twisting found in submersible pumps that causes them to strike against and damage the sides of the well casing. Pumps are connected to an ejector, tank, and control panel to automatically supply water as needed.
Feature
Convertible Jet Pump HP 1 hp Rated Voltage 115/230V AC Amps 17.0/8.5 Ejector Included No Flow Rate @ 10 ft Lift @ 30 PSI 19.2 gpm Flow Rate @ 10 ft Lift @ 40 PSI 18.4 gpm Flow Rate @ 10 ft Lift @ 50 PSI 10.2 gpm Flow Rate @ 20 ft Lift @ 30 PSI 12.2 gpm Flow Rate @ 20 ft Lift @ 50 PSI 5.4 gpm Flow Rate @ 50 ft Lift @ 30 PSI 14.3 gpm Flow Rate @ 50 ft Lift @ 40 PSI 9.2 gpm Flow Rate @ 50 ft Lift @ 50 PSI 4 gpm Flow Rate @ 80 ft Lift @ 30 PSI 7 gpmDokumentasi Produk
