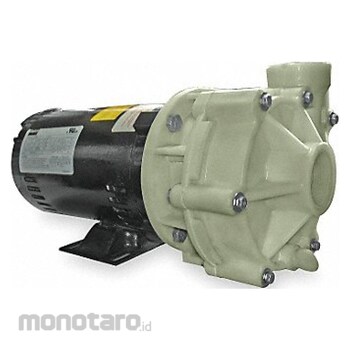

DAYTON Chemical Resistant Straight Centrifugal Pump
#Grup produk P109552099
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp10.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Bearing Type | Ball |
| Case Pressure (Maximum) (psi) | 100 |
| Compatible Motor Frame | 56J NEMA |
| Discharge Pipe Size (inch) | 1-1/2 |
| Discharge Pipe Type | NPT |
| Discharge Port (inch) | 1-1/2 NPT |
| Discharge Rotation | None |
| Duty cycle | Continuous |
| Electrical Connection Type | Hardwired |
| For Use With Potable Systems | No |
| Frequency (Hz) | 60 |
| Impeller Design | Closed |
| Intake Pipe Size (inch) | 1-1/2 |
| Intake Pipe Type | NPT |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Motor Speed (rpm) | 3450 |
| Overall Height (inch) | 7.5 |
| Priming | Manual |
| Seal Type | Mechanical |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter (inch) | 5/8 |
| Solid Diameter (Maximum) (inch) | 0.25 |
| Specific Gravity (Maximum) | 1 |
| Standards | cULus Listed |
| Suction Port (inch) | 1-1/2 NPT |
| Viscosity (Maximum) (SUS) | 100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Polypropylene housing chemical-resistant centrifugal pumps are made of lightweight plastic that is highly resistant to corrosives.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Centrifugal Pump Discharge Pipe Size 1 1/2 in Discharge Pipe Type NPT Feet of Head (Maximum) 72 ft Flow Rate (Maximum) 37 gpm Horsepower (Maximum) 3/4 hp Housing Material Polypropylene Impeller Design Closed Impeller Material Polypropylene Intake Pipe Size 1 1/2 in Intake Pipe Type NPT Media Temperature (Maximum) 140 Degrees F Phase Three Shut Off Pressure (Maximum) 72 ft of head Viscosity (Maximum) 100 SUS Flow Rate @ 10 ft of Head (Maximum) 37 gpmDokumentasi Produk
