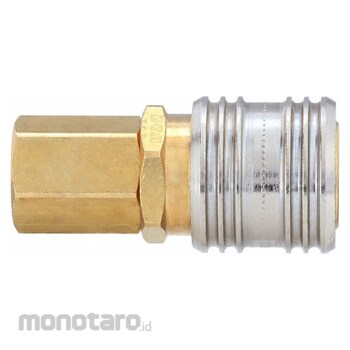

Danfoss Industrial Interchange Quick-Connect Air Coupling
#Grup produk P109551753
Spesifikasi
| UNSPSC | 27131613 |
|---|---|
| Barbed | No |
| Body Size (inch) | 1/4 |
| Color | Gold; Silver |
| Connection Type | NPT |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Fitting Type | FNPT |
| For use with | Industrial Interchange |
| Hose Fitting Gender | Female |
| Hose Fitting Size (inch) | 1/4 |
| Includes Valve | Yes |
| Interchange Type | Industrial |
| Material | Brass |
| Max. Outside Dia. (inch) | 1 |
| Maximum Flow Rate (L/minute) | 679 |
| Maximum Working Pressure at 70°F (psi) | 2000 |
| Overall Length (inch) | 2-5/64 |
| Seal Material | Nitrile |
| Temperature Range (°F) | -40 to 250 |
| Thread Size (inch) | 1/4\"-18 |
| Valve Type | Ball |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Industrial interchange brass quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) to connect tools to air lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Brass is a strong, highly conductive metal that resists corrosion and maintains durability at high temperatures. Brass is softer than other metal plugs and sockets for better connections and compatibility with copper or zinc piping.
Feature
Quick Connect Hose Coupling Industrial Brass Socket Female NPT Coupling Size 1/4 inUlasan Produk
