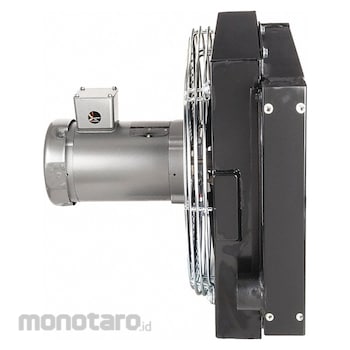

COOL-LINE Forced Air Oil Cooler
#Grup produk P109551498
Sebelum PPN:
Rp34.999.900 - Rp76.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101702 |
|---|---|
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up to ISO 320 |
| Fan Guard Material | Steel |
| Inlet Port Thread Gender | Female |
| Maximum Operating Temperature (°F) | 250 |
| Maximum Pressure (psi) | 377 |
| No. of Fans | 1 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminium |
| Outlet Port Thread Gender | Female |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
AC motor-driven forced-air oil coolers use a fan to cool hydraulic fluid as it passes though the heat exchanger coil or core. They require access to an electrical power source and have a larger capacity than DC and hydraulic motor-driven oil coolers, making them suitable for cooling stationary equipment such as industrial power units, gear boxes, lathes, and other machinery.
Feature
Forced Air Oil Cooler HP Heat Removed 20 hp Voltage 115/230V AC Number of Phases 1 Max Flow 50 gpm Max Pressure 377 psi Inlet Port Thread Size SAE #20 Inlet Port Thread Gender Female Outlet Port Thread Size SAE #20 Outlet Port Thread Gender Female Overall Height 19.6 in Overall Width 21.65 in Overall Depth 15.5 in Flow Range 4 to 50 gpm 8/4 Full Load Amps 0.5 hp HP Motor Frame Size 56C Motor Type - Oil Coolers ACUlasan Produk
