COOL-LINE Air-Cooled Oil Cooler
#Grup produk P109551470
Sebelum PPN:
Rp7.499.900 - Rp30.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101702 |
|---|---|
| Air Flow (fpm) | 1000 |
| Bypass Valve Included | No |
| For Fluid Viscosity | Up to ISO VG 320 |
| Includes | Universal Mounting Bracket |
| Inlet Port Thread Gender | Female |
| Maximum Operating Temperature (°F) | 250 |
| Maximum Pressure (psi) | 250 |
| Oil Cooler Material | Aluminium |
| Outlet Port Thread Gender | Female |
| Overall Depth (inch) | 2.56 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

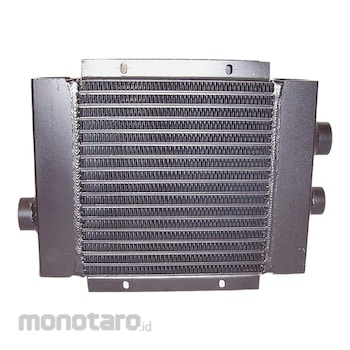

These air-cooled oil coolers pass heated oil through a radiator-like heat exchanger and use ambient air to cool the oil. Ambient temperature affects the cooling capacity of these coolers. They are used in agricultural equipment, construction, sites, and other areas where access to a power source is limited.
Feature
Hydraulic Oil Cooler HP Heat Removed 12 hp Flow Range 2 to 30 gpm Inlet Port Thread Size SAE #12 Inlet Port Thread Gender Female Outlet Port Thread Size SAE #12 Outlet Port Thread Gender Female Overall Height 11.73 in Overall Width 13.98 in Overall Depth 2.56 in Max Pressure 250 psi Max Operating Temp 250 Degrees F Air Flow 1 000 fpm Oil Cooler Material Aluminum Max Flow Rate 30 gpm Min Flow Rate 2 gpm Includes Universal Mounting BracketUlasan Produk
