CONTROL DEVICES Vacuum and Pressure Relief Valve
#Grup produk P109551452
Spesifikasi
| UNSPSC | 40141606 |
|---|---|
| Body Material | Brass |
| Function | Easily Convert from Vacuum to Pressure Relief by Reversing Poppet and Spring |
| Hex (inch) | 1-5/8 |
| Length (inch) | 5-1/4 |
| Max. CFM - Valves (cfm) | 40 |
| Maximum Temperature (°F) | 250 |
| Operational Pressure Range (psi) | 0 to 20 |
| Poppet | Brass Piston with O-Ring Seal |
| Preset Setting (PSI) | 0 to 14.7 |
| Seal Material | Nitrile |
| Spring Material | Stainless Steel |
| Valve Inlet Port | 1-inch NPT |
| Valve Vacuum Range (in.Hg) | 0 to 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

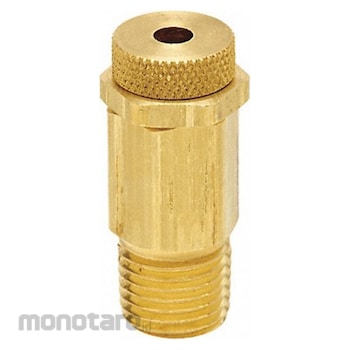

These vacuum relief valves are designed for use in systems to help maintain a desired vacuum level.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Pressure Relief Valve Valve Inlet Port 1/4 in NPT Preset Setting (PSI) 0 to 20 Valve Vacuum Range Not Rated Max CFM - Valves 2 cfm Max Temp 250 Degrees F Operational Pressure Range 0 to 20 psi Brass Body Material Stainless Steel Poppet Brass Seal Material Stainless Steel Spring Material Hex (In.) 9/16 in Length (In.) 1 3/4 in Pressure Relief Rated CFM @ Set Pressure 2 cfm Vacuum / Pressure Relief ValveUlasan Produk
