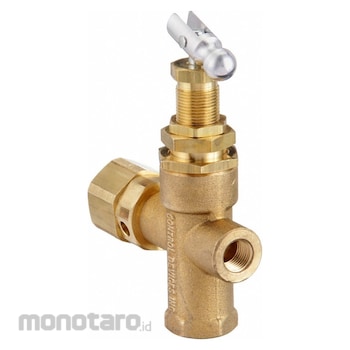

CONTROL DEVICES Air Compressor Valve
#Grup produk P109551319
Spesifikasi
| Adjustable Pressure | Yes |
|---|---|
| Connection Type | NPT |
| Inlet Type | NPT |
| Minimum Preset Pressure (psi) | 60 |
| Outlet Type | NPT |
| Spring Material | Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These valves manage the pressure in an engine-driven air compressor by combining the function of a pilot valve and an unloader valve in one device. A pilot valve maintains a set pressure range while the engine continues to run in between the cycles of the pump. An unloader valve releases, or bleeds off, air to reduce pressure that builds up in the pump. This happens when compressed air in the pump is not able to be stored in the tank or system when the maximum pressure is reached. Unloader valves protect the pump from the strain of working against pressure during startup, which puts stress on the pump and may reduce its operating life.
Feature
Venting Pilot Valve Inlet Size 1/4 in Inlet Type NPT Outlet Size 1/8 in Outlet Type NPT Exhaust Size 1/4 in Minimum Preset Pressure 60 psi Maximum Operating Pressure 115 psi Minimum Operating Pressure 95 psi Adjustable Pressure Yes Maximum Air Flow 20 scfm Body Material BrassUlasan Produk
