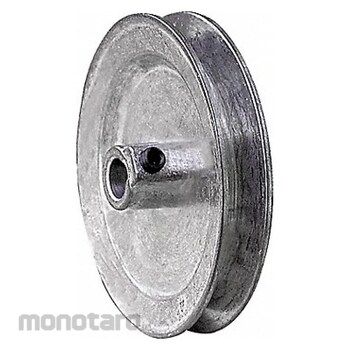

CONGRESS V-Belt Pulley
#Grup produk P109550879
Spesifikasi
| UNSPSC | 31171804 |
|---|---|
| Bore Type | Fixed |
| Face Width (inch) | 0.69 |
| For Belt Section | 4L; A |
| For V-Belt Type | Classical |
| Hub Projection (inch) | 0.594 |
| Hub Type | One Side |
| Includes | Set Screw |
| Length Through Bore (inch) | 1-3/32 |
| Material | Zinc |
| Material Fabrication | Cast |
| Material Grade | Zamak 3 |
| Number of Grooves | 1 |
| Pulley Construction | Spoked |
| Resistance Properties | Corrosion Resistant; Impact Resistant |
| Set Screw Size (inch) | 5/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fixed-bore die-cast V-belt pulleys have a finished bore, or center hole, that is machined to a set diameter to insert a shaft of the same size. They are ready to install with machined keyways and/or set screws to secure the shaft and prevent slipping. These zinc die-cast pulleys are non-corrosive, lightweight, impact-resistant, and non-toxic. They are suitable for light duty applications such as fans and blowers in HVAC applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Standard V-Belt Pulley 3L Pitch Diameter 2.25 in 3V Pitch Diameter Not Applicable 3VX Pitch Diameter Not Applicable 4L Pitch Diameter 2.25 in 5V Pitch Diameter Not Applicable 5VX Pitch Diameter Not Applicable A Pitch Diameter 2.25 in AX Pitch Diameter Not Applicable B Pitch Diameter Not Applicable BX Pitch Diameter Not Applicable C Pitch Diameter Not Applicable CX Pitch Diameter Not Applicable Bore Diameter 1/2 in Bore Type Fixed For Belt Trade Size 4L AUlasan Produk
