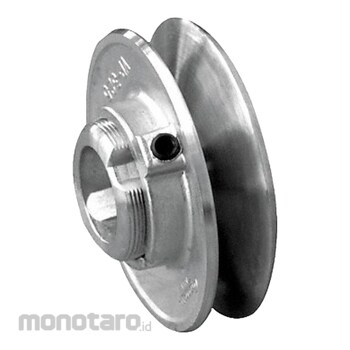

CONGRESS Variable-Pitch V-Belt Pulley
#Grup produk P109550851
Spesifikasi
| UNSPSC | 31171804 |
|---|---|
| For Belt Section | 3L4L5LAB |
| For V-Belt Type | Classical |
| Includes | Set Screw |
| Material | Zinc |
| Material Fabrication | Cast |
| Material Grade | Zamak 3 |
| Minimum Face Width (inch) | 0.469 |
| Number of Grooves | 1 |
| Pulley Construction | Plain |
| Set Screw Size (inch) | 5/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fixed-bore die-cast variable-pitch V-belt pulleys have a finished bore, or center hole, that is machined to a set diameter to insert a shaft of the same size. They are ready to install with machined keyways and/or set screws to secure the shaft and prevent slipping. These zinc die-cast pulleys are non-corrosive, lightweight, impact-resistant, and non-toxic. They are suitable for light duty applications such as fans and blowers in HVAC applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Variable Pitch V-Belt Pulley Bore Diameter 5/8 in For Belt Trade Size 3L 4L 5L A B For V-Belt Type Classical Material Zinc Maximum Pitch Diameter 2.60 in (3L) 3.10 in (4L) 3.20 in (5L) Number of Grooves 1 Outside Diameter 3.25 in Set Screw Location On Keyway 3L Pitch Diameter (Maximum) 2.6 in 3L Pitch Diameter (Minimum) 1.8 in 4L Pitch Diameter (Maximum) 3.1 in 4L Pitch Diameter (Minimum) 2.1 in 5L Pitch Diameter (Maximum) 3.2 in 5L Pitch Diameter (Minimum) 2.4 inUlasan Produk
