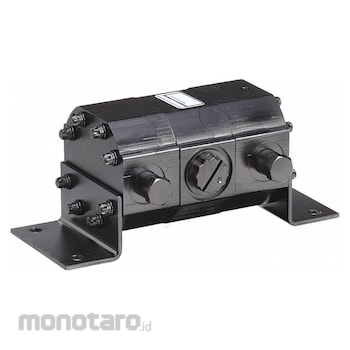

CONCENTRIC Hydraulic Flow Divider
#Grup produk P109550790
Sebelum PPN:
Rp8.699.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101613 |
|---|---|
| Body Material | Permananent Molded Cast Iron |
| Function | Split the Flow from a Single Pump Source to a Pair of Matched Cylinders or Fluid Motors; Synchronize Two Parallel Motions Hydraulically than Mechanically |
| Gears | 11 Tooth Hardened Steel |
| Max. Outer Pressure (PSI) | 4500 |
| RPM Range | 2000 to 4500 |
| Type | Rotary Gear |
| Valve Type | Integral Differential Relief |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Hydraulic Flow Divider Rotary Gear Integral Differential Relief Valve Type Flow Rate (GPM) 2.4-5 Displacement (cc/rev) 0.129 cc/rev Port Size Inlet (In.) 3/4 -16 Port Size Outlet (In.) 3/4 -16 Operating Pressure (PSI) 3 000 psi RPM Range 2000 to 4500 Max Outer Pressure (PSI) 4 500 psi Permananent Molded Cast Iron Body Material 11 Tooth Hardened Steel Gears Length (In.) 7.55 in Width (In.) 2.99 in Height (In.) 3.26 inUlasan Produk
