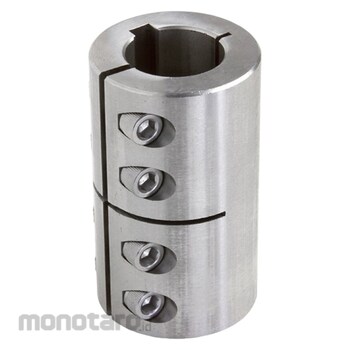

CLIMAX METAL PRODUCTS Rigid Shaft Coupling for Keyed Shaft
#Grup produk P109550392
Spesifikasi
| UNSPSC | 31163003 |
|---|---|
| Bore Type | Round Keyed |
| Included Screws | (4) Hex Socket Cap Screw |
| Number of Locking Screws | 4 |
| Shaft Locking Type | Clamp On |
| Standards | Conflict Minerals and Materials Compliant; DFARS Compliant; REACH Compliant; RoHS3 Compliant |
| System of Measurement | Inch |
| Zero Backlash | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
One-piece rigid shaft couplings lock two shafts together when both shafts are inserted and all of the socket cap screws are torqued down to close the slotted clamp. The two shafts and coupling must be installed simultaneously to ensure proper alignment.
Feature
Rigid Shaft Coupling Bore Diameter 1 3/4 in Bore Diameter 2 3/4 in Bore Type Round Keyed Clearance Diameter 1.81 in Coupling Construction One-Piece Coupling Material Stainless Steel Coupling Outside Diameter 1 1/2 in Different Bore Sizes No Keyway Depth 1 3/32 in Keyway Depth 2 3/32 in Minimum Bore Diameter 3/4 in Keyway Width 1 3/16 in Keyway Width 2 3/16 in Maximum Bore Diameter 3/4 in Maximum Speed 4 000 RPM Maximum Torque 990 in-lb Overall Length 2 1/4 inUlasan Produk
