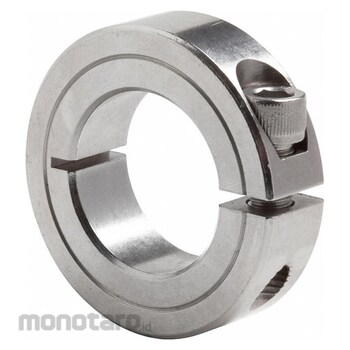

CLIMAX METAL PRODUCTS One-Piece Shaft Collar
#Grup produk P109550374
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Bore Tolerance (inch) | +0.003/-0.000 |
| Collar Construction | 1-Piece |
| Collar Material | Carbon Steel |
| Collar Material Finish | Black Oxide |
| Collar Material Grade | 1211 |
| For Shaft Type | Round |
| Included Screws | (1) Hex Socket Cap Screw |
| Maximum Operating Temperature (°F) | 300 |
| Minimum Operating Temperature (°F) | 0 (zero) |
| Screw Length (inch) | 1 |
| Screw Material | Carbon Steel |
| Screw Material Grade | 4140 |
| Screw Seating Torque (inch-lbs) | 340 |
| Screw Thread Size | 5/16\"-24 |
| Shaft Locking Type | Clamp On |
| Standards | DFARS Compliant; ISO Certified; REACH Compliant; RoHS3 Compliant |
| System of Measurement | Inch |
| Width Tolerance (inch) | +0.005/-0.005 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Stainless steel shaft collars feature high strength, corrosion resistance, and hardness for high-load applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Shaft Collar System of Measurement Inch Bore Type Round Bore Diameter 1/4 in Bore Thread Size Not Applicable Collar Outside Diameter 11/16 in Inside Height to Flat Not Applicable Clearance Diameter 0.88 in Collar Width 5/16 in Collar Material Stainless Steel Keyway Width Not Applicable Collar Material Grade 303 Keyway Depth Not Applicable Thread Direction Not Applicable Center to Lever Top Not Applicable Collar Construction 1-Piece Screw Material Stainless SteelUlasan Produk
