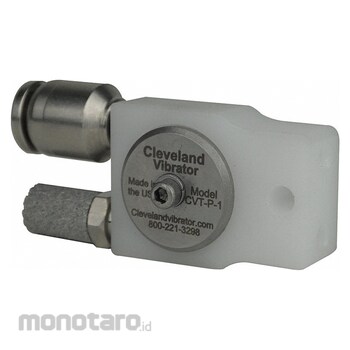

CLEVELAND VIBRATOR CO. Turbine & Ball Pneumatic Vibrator
#Grup produk P109550356
Sebelum PPN:
Rp9.899.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 20111606 |
|---|---|
| Application | Chutes and Pipes; Food and Pharma Clean Room; Packaging Feeders; Packers; Parts Tracks; Small Bins and Hoppers; Small Screeners |
| Bearing Type | Permanently Lubricated Roller Bearing |
| Duty cycle | Continuous |
| Housing Material | Acetal Plastic |
| Housing Material Grade | 304 |
| Includes | Grade 5 Mounting Hardware |
| Maximum Inlet Pressure (PSI) | 80 |
| Maximum Operating Temperature (°F) | 185 |
| Mount Plate Included | No |
| Mount Plate Required | No |
| Mount Type | Universal |
| Pneumatic Vibrator Type | Turbine |
| Series | CVT-P |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Sanitary turbine and ball vibrators feature water tight, smooth housings made from chemical-resistant materials. They are suitable for use in washdown applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Pneumatic Vibrator Housing Material Acetal Plastic Outlet Connection Size #10-32 UNF Air Flow Rate 0.61 cfm @ 60 psi 0.81 cfm @ 80 psi Maximum Force 11.4 lbf Inlet Connection Size #10-32 UNF Maximum Vibration Speed 19 250 vpm Maximum Bin Weight Capacity 100 lb Overall Height 0.88 in Overall Length 1.25 in Overall Width 0.72 in Sound Level 78 dBA Duty Cycle Continuous Pneumatic Vibrator Type Turbine Force @ PSI 10.5 lbf @ 60 psi 11.4 lbf @ 80 psi Mount Type UniversalUlasan Produk
