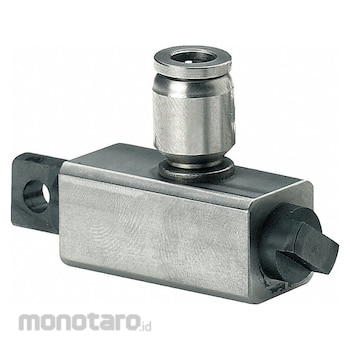

CLEVELAND VIBRATOR CO. Piston Pneumatic Vibrator
#Grup produk P109550338
Sebelum PPN:
Rp5.999.900 - Rp6.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 20111606 |
|---|---|
| Bin Weight Capacity (lbs) | 100 |
| Compatible Muffler Grainger Part Number | 1EJX3 |
| Duty cycle | Intermittent |
| Features | Dual Diameter Piston Allows for Mounting at any Angle; Tight Tolerance Bore and Spring-Less Design |
| Housing Material | Stainless Steel |
| Housing Material Grade | 304 |
| Includes | Grade 5 Mounting Hardware; Push-Fit Hose Connection |
| Inlet Connection (inch) | 1/4 Hose |
| Maximum Inlet Pressure (PSI) | 80 |
| Maximum Operating Temperature (°F) | 200 |
| Mount Type | End |
| Outlet Connection | #10-32 UNF |
| Overall Width (inch) | 0.63 |
| Pneumatic Vibrator Type | Piston |
| Series | VM |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
General purpose piston vibrators effectively move and convey dry or wet goods in chutes as well as compact liquids and solids in forms.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Piston Vibrator Housing Material Stainless Steel Outlet Connection Size #10-32 UNF Air Flow Rate 2 cfm @ 80 psi Maximum Force 15 lbf Inlet Connection Size 1/4 in Inlet Connection Type Hose Maximum Vibration Speed 13 500 vpm Maximum Bin Weight Capacity 100 lb Overall Height 0.94 in Overall Length 2.19 in Overall Width 0.63 in Sound Level 95 dBA Duty Cycle Intermittent Pneumatic Vibrator Type Piston Force @ PSI 15 lbf @ 80 psi Mount Type EndUlasan Produk
