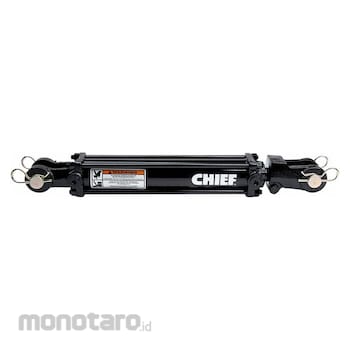

CHIEF Tie-Rod Hydraulic Cylinder
#Grup produk P109550152
Sebelum PPN:
Rp5.799.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 27121602 |
|---|---|
| Body Material | Steel |
| Cylinder Style | Tie-Rod |
| Duty Rating | Heavy Duty |
| Finish | Unfinished |
| Includes | Pins and Clips |
| Maximum Pressure (psi) | 3000 |
| Pin Dia. (inch) | 1 |
| Piston Material | Ductile Iron |
| Piston Rod Material | Chrome Plated |
| Piston Seal Type | Pre-loaded |
| Port Size | #8 SAE |
| Ring Material | Polyurethane |
| Rod Seal Type | Urethane U-Cup |
| Single Acting/Double Acting | Double Acting |
| Standards | SAE J214 |
| Temperature Range (°F) | -20 to 180 |
| Tie Rods | High Tensile |
| Tube Material | Heavy-wall Honed Steel |
| Wear Band Material | Durable; Non-Metallic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Heavy-duty tie-rod cylinders have a thicker body wall and larger rod diameter than standard-duty tie-rod cylinders, making them suitable for use in hydraulic systems up to 3000 psi. The tie rods are made of high-tensile steel and are thicker than standard-duty tie rods to provide additional strength and rigidity. Hard chrome-plated piston rods made of high yield-strength are precision ground and polished for smooth movement.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Hydraulic Cylinder Tie-Rod Bore Dia 2 in Stroke Length 4 in Rod Dia 1 1/8 in Retracted Length 14 1/4 in Port Size #8 SAE Extended Length 18 1/4 in Max Pressure 3 000 psi Temp Range -20 Degrees to 180 Degrees F Piston Material Ductile Iron Piston Rod Material Chrome Plated Ring Material Polyurethane Tube Material Heavy-wall Honed Steel Wear Band Material Durable Non-Metallic Body Material Steel Tie Rods High Tensile Finish Unfinished Standards SAE J214Ulasan Produk
