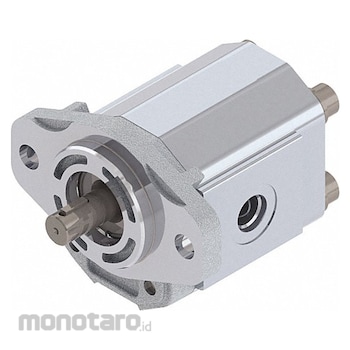

BUCHER HYDRAULICS Hydraulic Gear Pump
#Grup produk P109548731
Sebelum PPN:
Rp5.299.900 - Rp5.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151533 |
|---|---|
| Continuous Pressure (Maximum) (psi) | 3000 |
| Discharge Connection Size | 9/16\"-18 |
| End Cap Material | Cast Iron |
| Housing Material | Aluminium |
| Intake Connection | 3/4\"-16 UNF |
| Maximum Motor Speed (rpm) | 5000 |
| Media Intake Connection Size | 3/4\"-16 |
| Media Intake Connection Type | UNF |
| Motor Minimum Speed (rpm) | 500 |
| Mounting Type | 2 Bolt SAE AA |
| Overall Width (inch) | 4 |
| Rotation | CW |
| Shaft Outer Diameter (inch) | 1/2 |
| Shaft Type | Spline |
| Sub Brand | Bucher Hydraulics |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Unidirectional hydraulic gear pumps create pressure suitable for low-pressure applications requiring a constant and high flow rate. They are single-stage pumps with a drive shaft that turns in one direction, clockwise or counterclockwise.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Hydraulic Gear Pump Displacement per Revolution 0.152 cc/rev Media Intake Connection Size 3/4 In.-16 Discharge Connection Size 9/16 In.-18 Continuous Pressure- Maximum 3 000 psi Motor Speed - Maximum 5 000 RPM Motor Speed - Minimum 500 RPM Shaft Type Spline Rotation CW Housing Material Aluminum Mounting Type 2 Bolt SAE AA End Cap Material Cast Iron Media Intake Connection Type UNF Overall Length 3.5 in Overall Width 4 in Shaft Outer Diameter 1/2 in Wetted Material SteelUlasan Produk
