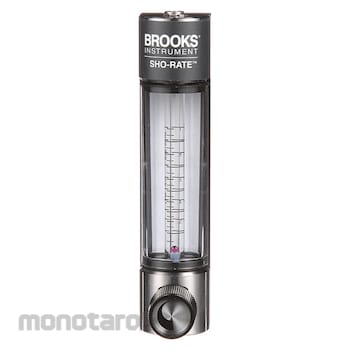

BROOKS Variable Area Flowmeter
#Grup produk P109548713
Spesifikasi
| UNSPSC | 20121009 |
|---|---|
| Accuracy (%) | ±5 |
| Body Material | Aluminium |
| Compatible Media Types | Air |
| Connection Size (inch) | 1/8 |
| Connection Type | FNPT |
| Display Type | Scale |
| Flow Rate (Maximum) (cfm) | 400 |
| Flow Rate (Minimum) (cfm) | 0 (zero) |
| Flow Rate Range (cfm) | 0-400 |
| Flowmeter Type | Variable Area |
| For Pipe Size (inch) | 2-11/20 |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Guage | No |
| Includes Totalizer | No |
| Manufacturer Part Number | 1250AR6031MRSVV |
| Max. Operating Pressure (psig) | 200 |
| Maximum Media Temperature (°F) | 250 |
| Media Temperature Range (°F) | 33 to 250 |
| Minimum Media Temperature (°F) | 33 |
| Mounting Location | Panel Mount |
| Mounting Orientation | Vertical |
| O-Ring Materials | Viton |
| Output Type | Scaled Pulse |
| Overall Height (inch) | 5.5 |
| Overall Length (inch) | 2.3 |
| Overall Width (inch) | 1.3 |
| Process Connection (inch) | 1/8 FNPT |
| Product Type | Flow Meter |
| Seal Material | Viton |
| Standards | International Calibration Certificate (ICC) |
| Unit of Measure | Liters |
| Viscosity (Maximum) (SUS) | 79.8 |
| Wetted Material | Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Panel-mount variable area flow meters for air and compressed gas measure the flow rate of media traveling through a system. Panel mount meters and sensors install perpendicular a pipe within a system or mounted on a panel board (with the proper fittings) alongside other instruments to provide several readings in one location.
Feature
Mechanical Flowmeter Product Type Flow Meter Flowmeter Type Variable Area Accuracy +/-5 Percent Connection Size 1/8 in Connection Type FNPT Compatible Flow Material Air Media Temperature - Maximum 250 Degrees F Media Temperature - Minimum 33 Degrees F Viscosity - Maximum 79.8 SUS Voltage - Maximum Not Applicable Housing Material Aluminum Rotor Material Not Applicable O-Ring Material Viton Seal Material Viton Shaft Material Not Applicable Wetted Material Stainless SteelUlasan Produk
