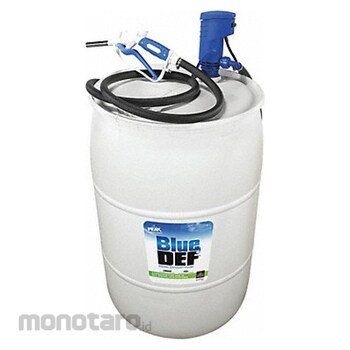

BLUE DEF Electric-Operated DEF Transfer Pump
#Grup produk P109548096
Spesifikasi
| UNSPSC | 40151529 |
|---|---|
| Adapter Connection Type | Buttress |
| Agency Compliance | CSA |
| Bung Connection Diameter (inch) | 2 |
| Diesel Exhaust Fluid Compatible | Yes |
| Discharge Connection Type | BSP |
| Discharge Tube Outlet ID (inch) | 3/4 |
| Discharge Tube Outlet OD (inch) | 3/4 |
| For Container Type | Drum |
| For Media Type | DEF |
| For use with | DEF 55 GAL DRUM |
| Frequency (Hz) | 60 |
| Full Load Current (A) | 1.8 |
| Hose Cover Material | EPDM |
| Hose Inside Diameter (inch) | 3/4 |
| Hose Length (ft) | 13 |
| Hose Outside Diameter (inch) | 3/4 |
| Hose Tube Material | EPDM |
| Housing Material | HDPE |
| Includes | Discharge HoseDrum AdapterPolyethylene Nozzle |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Max. Outlet Pressure (psi) | 23 |
| Max. Viscosity (CPS) | 5 |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Fluid Temperature (°F) | 311 |
| Maximum Head (ft) | 8 |
| Metered | No |
| Minimum Fluid Temperature (°F) | 12 |
| Motor Enclosure | PA6 |
| Motor HP (HP) | 1/2 |
| Motor Speed (rpm) | 7500 |
| Motor Type | Axial Gear |
| Nozzle Material | Poly |
| Nozzle Operation | Manual |
| Number of Phases | 1 |
| Power Source | Electric |
| Pump Connection ID (inch) | 3/4 |
| Pump Connection OD (inch) | 3/4 |
| Pump Connection Type | BSP |
| Pump Package Type | Unmetered Dispensing with Manual Shut-Off |
| Runs Dry | No |
| Seal Material | EPDM |
| Self Priming | Yes |
| Suction Tube Inner Diameter (inch) | 3/4 |
| Suction Tube Length (inch) | 60 |
| Suction Tube Material | EPDM |
| Suction Tube OD (inch) | 3/4 |
| Thermal Protection | Yes |
| Variable Speed | No |
| Wetted Materials | Polyethylene |
| for Container Size (gal) | 55 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
Feature
Hand Operated Drum Pump Self-Priming No Metered No Hose Length 20 ft Includes Discharge Hose Yes Piston Material Polyethylene Features Easy to Use / REBUILDABLE IF DAMAGED Seal Material Polyethylene For Use With Diesel Exhaust Fluid Adapter Connection Type Buttress For Container Type Drum Hose Cover Material EPDM Includes Bung Adapter Yes Includes Nozzle Yes Runs Dry Yes Nozzle Operation Manual Adapter Material Polyethylene Compatible Chemicals DEF Housing Material - Pumps HDPEUlasan Produk
