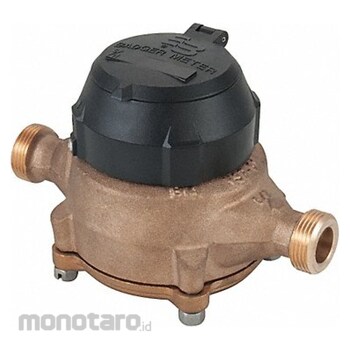

BADGER Nutating Disc Flowmeter & Totalizer
#Grup produk P109546317
Sebelum PPN:
Rp7.599.900 - Rp57.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112501 |
|---|---|
| Accuracy (%) | ±1.5 |
| Compatible Flow Material | Water |
| Connection Type | NPT |
| Display Type | Mechanical |
| Flowmeter Type | Positive Displacement |
| Housing Material | Bronze |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Max. Viscosity (SUS) | 32.6 |
| Maximum Media Temperature (°F) | 80 |
| Maximum Operating Pressure (psi) | 150 |
| Media Temperature Range (°F) | 32 to 80 |
| Minimum Media Temperature (°F) | 32 |
| Mounting Location | Inline |
| Mounting Orientation | Horizontal |
| O-Ring Materials | Ethylene Propylene |
| Product Type | Mechanical Flowmeter |
| Seal Material | EPDM |
| Shaft Material | Stainless Steel |
| Standards | AWW C-700 NSF/ANSI 61&372 |
| Unit of Measure | Gallons |
| Wetted Material | Bronze; Noryl; Nylon; Polyethylene; Styrene Acrylonitrile |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Nutating disc flowmeters for water measure the flow rate of water and water-based liquids traveling through a system. These flowmeters provide accurate and repeatable measurements of low-viscosity liquids in low-flow rate applications.
Feature
Mechanical Flowmeter Product Type Mechanical Flowmeter Flowmeter Type Positive Displacement Accuracy +/-1.5 Percent Connection Size 5/8 in Connection Type NPT Compatible Flow Material Water Media Temperature - Maximum 80 Degrees F Media Temperature - Minimum 32 Degrees F Viscosity - Maximum 32.6 SUS Voltage - Maximum Not Applicable Housing Material Bronze Rotor Material Not Applicable O-Ring Material Ethylene Propylene Seal Material EPDM Shaft Material Stainless SteelUlasan Produk
