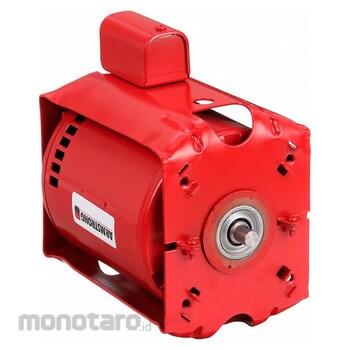

ARMSTRONG PUMPS INC. Motor for Circulating Pump
#Grup produk P109543930
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| Compatible with Brand | Armstrong |
| Compatible with Manufacturer Model Number | S-45 |
| Compatible with Pump Type | In-Line Circulating Pumps |
| Compatible with Series | S&H 4 Series |
| Compatible with Series Family | S-45 |
| Electrical Connection Type | Hardwired |
| Frame | 48Z |
| Frequency (Hz) | 60 |
| Full Load Current (A) | 7.6 |
| Horsepower (HP) | 1/4 |
| Includes | Hardwire Kit |
| Manufacturer Part Number | 817025-007 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum RPM | 1800 |
| Minimum Ambient Temperature (°F) | 32 |
| Motor Efficiency Group | NEMA Premium |
| Motor Enclosure Design | Open Drip-Proof |
| Motor Thermal Protection | Auto |
| Nameplate Voltage (V) | 120 AC |
| Number of Speeds | 1 |
| Phase | Single |
| Standards | UL listed |
| Voltage (V) | 115 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard hydronic circulating pumps have fewer replaceable wear parts than 3-piece circulating pumps. These pumps are mounted to the pipe in-line near the water heater or boiler.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Hydronic Circulating Pump Compatible Intake Pipe Size 1 1/4 in Connection Type Flange Face to Face Dimension 6 3/8 in Flange or Union Included Yes For Use With Potable Systems No Horsepower 1/6 Maximum Feet of Head 29 ft Maximum Flow Rate @ 10 Feet of Head 24 gpm Maximum Flow Rate @ 15 Feet of Head 18 gpm Maximum Flow Rate @ 1 Foot of Head 34 gpm Nameplate Voltage 120V AC Number of Speeds 1 Phase Single Pump Type Standard Series Family E.2Ulasan Produk
