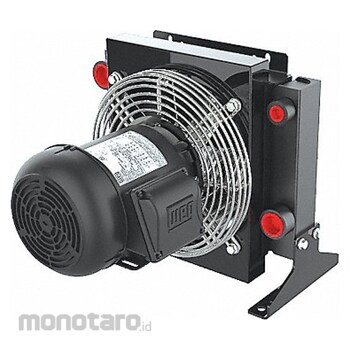

AKG Forced Air Oil Cooler
#Grup produk P109542296
Spesifikasi
| UNSPSC | 40101702 |
|---|---|
| Bypass Valve Included | No |
| Compatible Hydraulic Fluids | Up to ISO 320 |
| Fan Blade Material | PPG |
| Fan Guard Material | Steel |
| Flow Range (GPM) | 14 to 70 |
| For Fluid Viscosity (cSt) | 50 |
| Full Load Amps (A) | 2 |
| HP Heat Removed (HP) | 17 |
| Horsepower (HP) | 0.5 |
| Includes Mounting Bracket | Yes |
| Includes Mounting Hardware | No |
| Inlet Port Thread Gender | Female |
| Inlet Port Thread Size (inch) | SAE #16 |
| Max. Flow (GPM) | 70 |
| Maximum Oil Temperature (°F) | 250 |
| Maximum Operating Temperature (°F) | 250 |
| Maximum Pressure (psi) | 377 |
| Motor Connection Type | Flying Leads |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Size | 56C |
| Motor Type - Oil Coolers | AC |
| Mounting Bracket Material | Steel |
| Mounting Style - Oil Coolers | Foot Mount |
| No. of Fans | 1 |
| Number of Phases | 3 |
| Oil Cooler Finish | Powder Coated |
| Oil Cooler Material | Aluminium |
| Outlet Port Thread Gender | Female |
| Outlet Port Thread Size (inch) | SAE #16 |
| Overall Depth (inch) | 14.5 |
| Overall Height (inch) | 15.91 |
| Overall Width (inch) | 14.5 |
| Shroud Material | Steel |
| Voltage (V) | 230/460 AC |
| With Motor/Without Motor | With Motor |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fan-powered aftercoolers install immediately downstream from the air compressor. Fan-powered aftercoolers cool the air with a motor-driven fan that blows air on the coils.
Feature
Air Cooled Aftercooler Maximum Compressor Output Power 75 hp Maximum Air Flow 539 cfm Air Inlet Size 2 in Air Inlet Connection Type NPT Maximum Operating Temperature 350 Degrees F Maximum Operating Pressure 250 psi Overall Height 21 in Overall Width 26 3/8 in Overall Depth 17 3/4 in Phase Single Voltage 115/230V AC Maximum Fan Horsepower 1/2 hp Air Outlet Connection Type NPT Air Outlet Size 2 in Construction Aluminum Cooling Method Air Current Rating 4 AUlasan Produk
