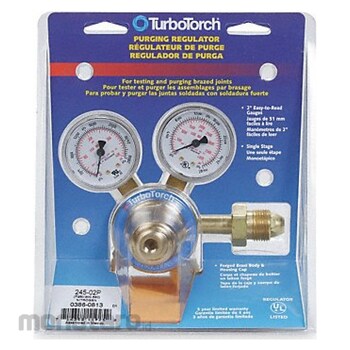

TURBOTORCH Gas Regulator
#Grup produk P109492399
Sebelum PPN:
Rp13.999.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 23171541 |
|---|---|
| Application | Purging |
| Body Diameter (in) | 2.3 |
| Body Material | Brass |
| CGA Number | CGA 580 |
| Control Type | T-Handle |
| Diaphragm Material | Neoprene |
| For Gas Type | Nitrogen |
| Gauge Diameter (in) | 2 |
| Inlet Connection | CGA 580 |
| Inlet Connection Gender | Male |
| Inlet Connection Size (in) | 0.965-14 |
| Inlet Connection Type | NGO |
| Inlet Pressure (Maximum) (psig) | 3000 |
| Inlet Thread Direction | Right Hand |
| Mounting Type | Cylinder |
| Number of Stages | Single Stage |
| Outlet Connection (in) | 1/4 37° Flared Tube |
| Outlet Connection Gender | Female |
| Outlet Connection Size (in) | 1/4-18 |
| Outlet Connection Type (°) | 37 Flared Tube |
| Outlet Pressure (Minimum) (psig) | 0 |
| Regulator Series | 245 |
| Standards | TC Certified |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These regulators control nitrogen flow through HVAC tubing to displace oxygen, which can lead to oxidation that forms on the inner surface of copper piping from high brazing temperatures during HVAC installations. They have a standard inlet connection (CGA) with flared-tube outlet connections.
Feature
Gas Regulator Maximum Gauge Outlet Pressure 4 000 psig Number of Stages Single Stage Compatible Gas Type Nitrogen Control Type T-Handle Inlet Connection Type NGO Inlet Connection Gender Male Inlet Connection Size 0.965 In.-14 Outlet Pressure (Maximum) 250 psig Outlet Connection Gender Female Outlet Connection Size 1/4 In.-18 Outlet Connection Type 37 Degrees Flared Tube Body Material Brass Diaphragm Material Neoprene CGA Number CGA 580 Application Purging Body Diameter 2.3 inUlasan Produk
