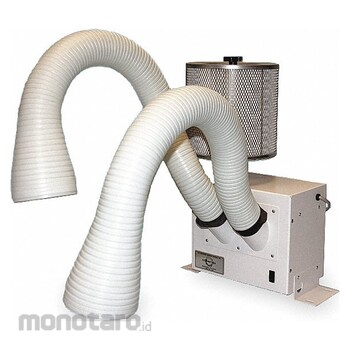

EXTRACT-ALL Benchtop Soldering Fume Extractor
#Grup produk P109490072
Spesifikasi
| UNSPSC | 40161602 |
|---|---|
| Air Flow (Maximum) (cfm) | 350 |
| Air Flow (Minimum) (cfm) | 50 |
| Compatible Filter Manufacturer Part Number | F-981-1F-981-2AF-981-3F-981-4AF-981-5ARF-981-1RF-981-5 |
| Current (A) | 2.8 |
| Extraction Arm Material | Polypropylene |
| Extraction Hose Diameter (in) | 3 |
| Extraction Hose Length (ft) | 4.4 |
| Frequency (Hz) | 60 |
| Housing Color | White |
| Housing Depth (in) | 19.5 |
| Housing Finish | Polyurethane Powder Coated |
| Housing Material | Steel |
| Includes | (2) Sets of Mounting BracketsInlet Cap to Close Off Inlet for Single Arm UsePower Cord with Plug |
| Includes Extraction Arm | Yes |
| Input Voltage (VAC) | 120 |
| Manufacturer Part Number | S-981-2B |
| Motor Horsepower (Maximum) (hp) | 1/8 |
| Mounting Location | Wall |
| Number of Extraction Arms | 2 |
| Phase | Single |
| Power Consumption (W) | 350 |
| Power Source | Corded |
| Sound Level (dB) | 68 |
| Standards | CE; OSHA; UL |
| Weight (lbs) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These benchtop soldering-fume extractors have two articulating arms to remove fumes from two workstations. The articulating arms can be positioned individually around one or two workpieces. Extractors filter contaminated air and return clean air to the workspace, eliminating the need for venting to an outside space.
Feature
Benchtop Fume Extractor Maximum Air Flow 350 cfm Minimum Air Flow 50 cfm Extraction Arm Diameter 3 in Extraction Arm Length (Maximum) 4.4 ft Power Consumption 350 W Sound Level 68 dB Input Voltage 120V AC Motor Horsepower (Maximum) 1/8 hp Compatible Filter Manufacturer Part Number F-981-1 F-981-2A F-981-3 F-981-4A F-981-5A RF-981-1 RF-981-5 Current 2.8 A Extraction Arm Material Polypropylene Frequency 60 Hz Housing Color White Housing Depth 19.5 inUlasan Produk
