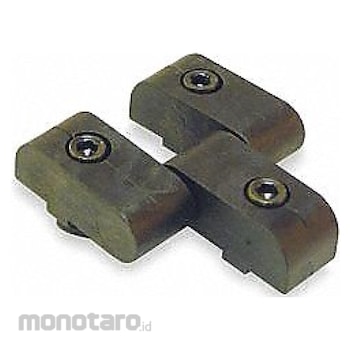

FAZTEK Hing & Pivot for T-Slot Framing
#Grup produk P109465438
Spesifikasi
| UNSPSC | 31162403 |
|---|---|
| Color | Black |
| Compatible Series | 15 Series |
| Fastener Thread Size (inch) | 5/16 |
| Finish | Plain |
| For Slot Width (inch) | 0.4 |
| Hinge Type | Captive Lift-Off |
| Includes Fasteners | Yes |
| Item/Primary Noun | Standard Hinge |
| Locking Pivot | No |
| Manufacturer Part Number | 15HI8704 |
| Material | Glass-Filled Nylon |
| Maximum Range of Motion (°) | 180 |
| Minimum Range of Motion (°) | 0 (zero) |
| Mounting Hole Diameter (inch) | 9/32 |
| Overall Height (inch) | 2-5/16 |
| Overall Length (inch) | 2-13/16 |
| Overall Width (inch) | 2-5/16 |
| Series | 15 Series |
| System of Measurement | Inch |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Captive lift-off hinges each have a mating pin that lifts out of the hinge's hub. This allows parts connected by the hinges to be separated without having to uninstall the hinges. These hinges allow doors, lids, and similar parts to open, close, or lift off completely on structural framing projects. The top section of each hinge needs to be loosened in order for the mating pin to be able to lift out. Each hinge has three leaves, and each leaf has holes that accept screws for mounting.
Feature
Standard Hinge Overall Length 2 13/16 in Overall Width 2 5/16 in Overall Height 2 5/16 in Glass-Filled Nylon Mounting Hole Diameter 9/32 in Maximum Range of Motion 180 Degrees Minimum Range of Motion 0 Degrees System of Measurement Inch Finish Plain Captive Lift-Off Compatible Brand and Series 15 Series Compatible Manufacturer Model Number 15EX1515L-48 15EX1515L-96 15EX1515UL-48 15EX1530L-48 15EX1530L-96 480720 Fastener Thread Size 5/16 in Includes Fasteners Yes BlackUlasan Produk
