Spesifikasi :
Set Point
- Contact : 240 VAC, 0.5A max (recommended)
- Active : Hi/Lo, Hi/Hi, Lo/Lo selectable two limited programmable, ON/OFF. *PID Control
Wash
- Contact : 240 VAC, 0.5A max (recommended)
- Time : On: 0~99min, 59sec, Off: 0~999hr 59min.

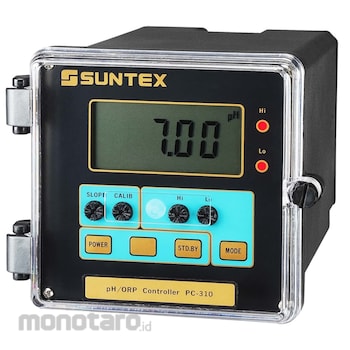

SUNTEX Intelligent pH/ORP Controller
#Grup produk P109457439
Spesifikasi
| Measuring Range | pH -2.00~16.00pH, ORP -1999~1999mV, Temperature -30.0~130.0°C |
|---|---|
| Resolution | pH 0.01, ORP 1mV, Temperature 0.1°C |
| Accuracy | pH ± 0.01 (± 1 Digit), ORP ± 0.01% (± 1 Digit), Temperature ± 0.2°C (± 1 Digit) with Temperature Error Correction Function |
| Temperatur Compensation | Automatic with NTC 30K or Pt-1000 (Manual Adjustment) |
| Ambient Temperature (°C) | 0~50 |
| Analog Output 1 | Isolated DC 0/4~20mA corresponding to pH/ORP, Max. Load 500Ω |
| Analog Output 2 | Isolated DC 0/4~20mA corresponding to Temperature, Max. Load 500Ω |
| Cut off Dimensions (HxW) (mm( | 93x93 |
| DC Voltage Ouput (V) | ±12 |
| Dimensions (HxWxD) (mm) | 96x96x132, 1/4 DIN |
| Display | Text Mode (LCM with auto-sense backlight and contrast funtion) |
| Input Impedance (ohm) | >10¹² |
| Installation | Wall or pipe or panel mounting |
| Power Supply | 100~240 VAC ±10%, 50~60Hz, 7W Max. |
| Protection | IP 65 (NEMA 4X) |
| Storage Temperature (°C) | -20~70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Graphical Menu Design- Dot-Matrix LCD
- Auto-Sense Backlight Display
- IP65 Waterproof Protection
- Multi-Cal Calibration
- Up to 3 Points of Calibration
- Automatic Temperature Compensation
- Security Protection Enhancement
