Spesifikasi :
Resolution :
- Conductivity 0.01/0.1/1
- Resistivity : 0.01MΩ·cm
- Temperature : 0.1°C
Accuracy :
- Conductivity : ±1% (± 1 Digit)
- Resistivity : ±1% (± 1 Digit)
- Temperature : ± 0.2°C (± 1 Digit) with Temperature Error Correction Function
Temperature Coefficient : Linear compensation at 0.00%~40.00%, Non-Linear compensation for natural water
Set Point
- Contact : 240 VAC, 0.5A max (recommended)
- Activate : Hi/Lo, Hi/Hi, Lo/Lo selectable two limited programmable, ON/OFF
Wash
- Contact : 240 VAC, 0.5A max (recommended)
- Time : On: 0~99min, 59sec, Off: 0~999hr 59min.

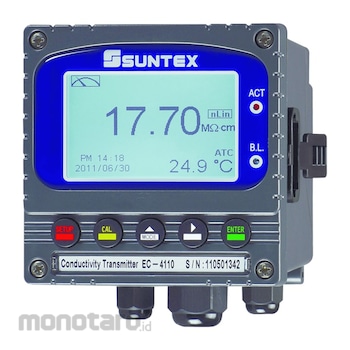

SUNTEX Intelligent Conductivity Transmitter
#Grup produk P109457411
Spesifikasi
| Conductivity Range | 0.00μS/cm~200.0mS/cm in 5 ranges, Auto or Fixed |
|---|---|
| Resitiviy Range | 0.00~20.00MΩ cm |
| Temperature Range (°C) | -30~130.0 |
| Temperature Compensation | Automatic with NTC 30K/PT-1000 or Manual Adjustment |
| Ambient Temperature (°C) | 0~50 |
| Analog Output 1 | Isolated DC 0/4~20mA corresponding to measuring range, Max. 500Ω |
| Analog Output 2 | Isolated DC 0/4~20mA corresponding to Temperature, Max. 500Ω |
| Cell Constant | 0.01, 0.05, 0.1, 0.5, 10.0cm-1 fixed, freely selectable 0.008~19.99cm-1 |
| Cut off Dimensions (HxW) (mm( | 93x93 |
| Dimensions (HxWxD) (mm) | 96x96x132, 1/4 DIN |
| Display | Text Mode (LCM graphic display with auto-sense backlight and contrast funtion) |
| Installation | Wall or Pipe or Panel Mounting |
| Power Supply | 100~240 VAC ±10%, 50~60Hz, 7W Max. |
| Protection | IP 65 (NEMA 4X) |
| Storage Temperature (°C) | -20~70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Graphical Menu Design- Dot-Matrix LCD
- Auto-Sense Backlight Display
- IP65 Waterproof protection
- Automatic Temperature Compensation
- Security Protection Enhancement
