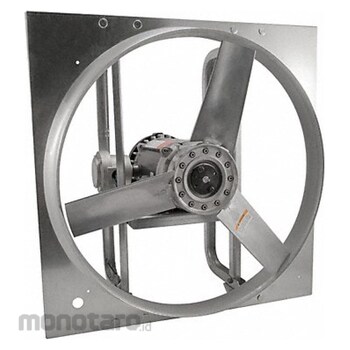

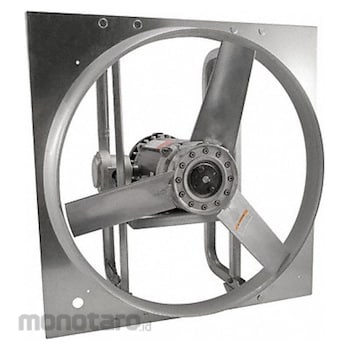

DAYTON Panel Exhaust Fan
#Grup produk P109451019
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 46181518 |
|---|---|
| Assembled | Assembled |
| Blade Diameter (inch) | 24 |
| Blade Material | Aluminium |
| Drive Type | Direct Drive |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Guard Type | None |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Includes Drive Package with Motor | Yes |
| Manufacturer Part Number | 1000000 |
| Max. Exhaust Airflow @ 0.125in SP (cfm) | 5851 |
| Max. Noise Level @ 0.000in SP @ 5ft (sones) | 28 |
| Maximum Exhaust Airflow @ 0.000in SP (cfm) | 6317 |
| Maximum Exhaust Airflow @ 0.250in SP (cfm) | 5314 |
| Maximum Exhaust Airflow @ 0.375in SP (cfm) | 4729 |
| Method of Construction | Stamped |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Horsepower (HP) | 3/4 |
| Motor Insulation | Class B |
| Motor Speed (rpm) | 1750 |
| Mounting Location | Ceiling; Wall |
| Mounting Orientation | Horizontal; Vertical |
| Nameplate Voltage (V) | 115/208-230 AC |
| Number of Blades | 3 |
| Number of Speeds | 1 |
| Phase | 1 |
| Speed Controllable | No |
| Ventilation Type | Exhaust |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These fans feature an explosion-proof motor and are rated for use in areas where combustible dust or certain flammable gases or vapors are present. Direct-drive panel exhaust fans have fewer moving parts and typically require less maintenance than belt-drive panel exhaust fans. Each fan features a motor that's directly mounted on the fan shaft, which reduces friction and improves efficiency compared to a belt-drive fan.
