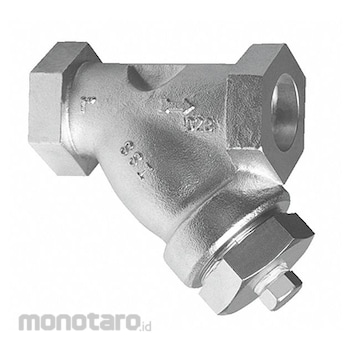

SSI Y Strainers
#Grup produk P109448918
Spesifikasi
| UNSPSC | 40142501 |
|---|---|
| Blow Off Port (inch) | 1/4 |
| Class | 1500 |
| Connection Type | NPT |
| Flow Rate (gpm) | 3 |
| Gasket Material | 304 Stainless Steel |
| Height (inch) | 3-1/2 |
| Housing Material | Carbon Steel |
| Includes Screen | Yes |
| Length (inch) | 4-3/4 |
| Manufacturer Part Number | 0050-1500Y1TC-1 |
| Maximum Pressure at 100°F | 3500 |
| Maximum Temperature (°F) | 800 |
| Pipe Size (inch) | 1/2 |
| Port 1 Connection Size (inch) | 1/2 |
| Port 1 Gender | Female |
| Port 2 Connection Size (inch) | 1/2 |
| Port 2 Connection Type | NPT |
| Port 2 Gender | Female |
| Port 3 Connection Size (inch) | 1/4 |
| Port 3 Connection Type | NPT |
| Screen Area (sq inch) | 1.41 |
| Screen Material | 304 Stainless Steel |
| Screen Perforation Size (inch) | 0.031 |
| Series | 1500Y |
| Standards | ASME B1.20.1 |
| Strainer Type | Perforated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Carbon steel Y strainers are extremely strong to resist high pressures, high temperatures, and leaks, and withstand mechanical shocks and stress. These carbon steel Y strainers protect pumps, control valves, and other process equipment from contaminants in oil and petrochemical industries.
Feature
Y Strainer Pipe Size 1/2 in Maximum Pressure at 100 deg F 3 500 psi Length 4 3/4 in Height 3 1/2 in Blow Off Port 1/4 in Screen Material 304 Stainless Steel Perforated Screen Size 0.031 in Housing Material Carbon Steel Class 1500 Flow Rate 3 gpm For Use With Gas Liquid Oil Paper Pulp Steam Water Includes Screen Yes Maximum Pressure 3 500 psi @ 100 Degrees F Maximum Temperature 800 Degrees F Port 1 Connection Size 1/2 in Port 1 Connection Type NPT Port 1 Gender FemaleUlasan Produk
