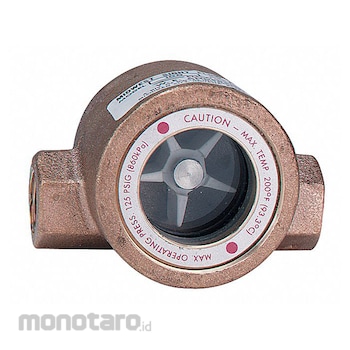

Dwyer Window-Style Sight Glass Flow Indicators
#Grup produk P109448635
Sebelum PPN:
Rp7.099.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112510 |
|---|---|
| Body Material | Bronze |
| Connection Type | FNPT |
| Flow Direction | Horizontal Left, Horizontal right, vertical down, vertical Up |
| For Media Type | Gear Lube; Glycol; Hydraulic Oils; Motor Oils; Non-Corrosive Fluids; Non-Corrosive Gases; Water |
| Indicator Type | Rotor |
| Max. Operating Pressure (psig) | 125 |
| Maximum Media Temperature (°F) | 200 |
| Media Temperature Range (°F) | 32 to 200 |
| Minimum Media Temperature (°F) | 32 |
| Seal Material | Buna-N |
| Sight Material | Tempered Glass |
| Wetted Material | 316 Stainless Steel; ABS; Bronze; Buna-N; PTFE; Tempered Glass; Viton |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flow sights with indicators show liquids moving through a system. These inline devices use impellers or rotors to visually represent the flow of media.
Feature
Window Sight Flow Indicator with Impeller Indicator Type Rotor Body Material Bronze Connection Size 1/4 in Connection Type FNPT Operating Pressure - Maximum 125 psig Sight Material Tempered Glass Sight Diameter 1.7 in Number of Windows 1 Flow Direction Horizontal Left Horizontal Right Vertical Down Vertical Up Media Temperature - Minimum 32 Degrees F Media Temperature -Maximum 200 Degrees F Seal Material Buna-NUlasan Produk
