ANVIL Tube & Pipe Rollers
#Grup produk P109445434
Spesifikasi
| UNSPSC | 20122824 |
|---|---|
| Base Material | Cast Iron |
| Bolt Length (inch) | 1-1/2 |
| Bolt Thread Size (inch) | 1/2 |
| Fastener Material | Steel |
| For Maximum Pipe Size (inch) | 4 |
| For Use On | Pipe |
| Load Capacity (lbs) | 750 |
| Maximum Operating Temperature (°F) | 400 |
| Mount Hole Center to Center Length (inch) | 2 |
| Mount Type | Bolted |
| Overall Length (inch) | 6.63 |
| Resistance Properties | Corrosion Resistant |
| Series | Figure 175 |
| Standards | ANSI/MSS SP-69; Federal Specification A-A-1192A, Type 44; MSS SP-58, Type 44; WW-H-171-E, Type 45 |
| Style | Roller Chair |
| Support material | Cast Iron |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

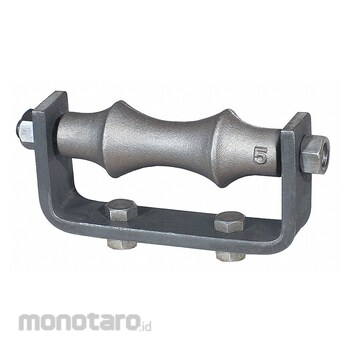

These rollers mount to a surface and support non-insulated tube and pipe in applications where the system moves due to thermal expansion and contraction. They bolt to the floor or the top of a beam with fasteners, or weld to supporting steel.
Feature
Roller Chair Base Material Cast Iron For Maximum Pipe Size 4 in Load Capacity 750 lb Mount Type Bolted Overall Length 6.63 in Pipe Support Type Roller Support Material Cast IronUlasan Produk
