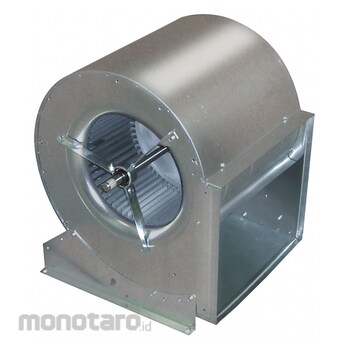

DELHI Standard Forward-Curved Blowers
#Grup produk P109442075
Sebelum PPN:
Rp4.299.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101601 |
|---|---|
| Assembly | Unassembled |
| Bearing Type | Ball |
| Chemical Resistant | No |
| Corrosion Resistant | Yes |
| Discharge Position | Bottom Horizontal; Down Blast; Top Horizontal; Up Blast |
| Drive Package with Motor Included? | No |
| Drive Type | Belt Drive |
| For Air Type | General/Clean |
| For High-Static Pressure Applications | Yes |
| Hazardous Location Application | No |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Maximum Ambient Temperature (°F) | 250 |
| Maximum Inlet Air Temperature (°F) | 250 |
| Minimum Ambient Temperature (°F) | -65 |
| Number of Discharge Positions | 4 |
| Number of Inlets | 2 |
| OEM Replacement | No |
| Outlet Shape | Rectangular |
| Outlet Type | Non-Flanged |
| Rotation | CW/CCW |
| Spark Resistant Construction Type | Not Rated |
| Wheel Material | Steel |
| Wheel Material Finish | Zinc Plated |
| Wheel Type | Forward-Curved |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Belt-drive blowers without drive do not come with a drive package, so the user must provide the motor and other drive components. Belt-drive blowers are typically quieter and provide more control over the blower speed and airflow than direct-drive blowers.
Feature
Blower Wheel Type Forward-Curved Drive Type Belt Drive Includes Drive Package No Assembly Unassembled Wheel Diameter 10 1/4 in Minimum Airflow 2 800 cfm Maximum Airflow 3 220 cfm Maximum Static Pressure 2 1/2 in wc Maximum Inlet Air Temperature 250 Degrees F Shaft Diameter 3/4 in Bearing Type Ball Wheel Material Steel Housing Material Steel Wheel Width 7 1/8 in Number of Inlets 2 Inlet Diameter 8 in Outlet Shape Rectangular Outlet Height 10 1/4 in Outlet Width 9 1/8 inUlasan Produk
