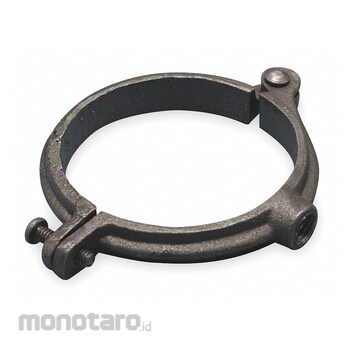

NVENT CADDY Split-Ring Hangers for Tube & Pipe
#Grup produk P109441313
Spesifikasi
| UNSPSC | 40141725 |
|---|---|
| Bolt Material | Electro-Galvanized Steel |
| Cushion Material | EPDM Rubber |
| Cushioned | Yes |
| Features | Clamp can be Closed with One Hand; Comes with a Welded 3/8 in Cap Nut Allowing Attachment to Threaded Rod; Steel Closing Mechanism Retains Strength When Exposed to Heat |
| For Insulated Pipe | No |
| For Threaded Rod Size (inch) | 3/8 |
| For Use On | Copper Tube; Pipe |
| Hanger Material | Steel |
| Hanger Material Finish | Electro-Galvanized |
| Hanger Type | Swivel Loop |
| Load Capacity (lbs) | 300 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°F) | -58 |
| Resistance Properties | Corrosion Resistant |
| Standards | DIN 4109; DIN EN 13501-1; DIN EN ISO 3822-1; MSS SP-58, Type 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These standard split-ring hangers support non-insulated tube and pipe and allow suspended systems to be hung close to ceilings or walls. These two-piece clamps fit around the tube or pipe and fasten together.
Feature
Split-Ring Hanger Bolt Material Steel Cushioned No For Maximum Outside Diameter 13/16 in For Pipe Size 1/2 in For Threaded Rod Size 3/8 in Hanger Material Cast Iron Hanger Material Finish Electro-Galvanized Hanger Type Swivel Loop Load Capacity 180 lb Overall Height 1.5 in Overall Width 0.38 inUlasan Produk
