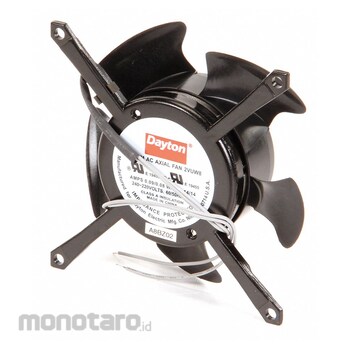

DAYTON Skeleton Compact Axial Fans (Kipas Aksial)
#Grup produk P109440970
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40101604 |
|---|---|
| AMPS | 0.12/0.14 |
| Bearing Type | Ball |
| Blade Material | Polybutylene |
| CFM @ 0.000-In. SP | 110/92 |
| Color | Black |
| Depth (inch) | 1-1/2 |
| Electrical Connection - Fans | Lead Wires |
| Environmental Applications | Equipment Cooling |
| Fan Shape | Skeleton |
| Frequency (Hz) | 60/50 |
| Height (inch) | 4-7/16 |
| Housing Material | Aluminium |
| IP Rating | IP20 |
| Maximum Ambient Temperature (°F) | 158 |
| Motor Design | Shaded Pole |
| Motor Insulation | Class A |
| Mounting Eye O.C. (inch) | 4-1/8 |
| Mounting Position | Vertical or Horizontal |
| Rotation Speed (rpm) | 3000/2600 |
| Sound Level | 50/45 |
| Standards | CE Certified and RoHS Compliant; UL Component Recognized for US and Canada |
| Thermal Protection | Impedance |
| Voltage (V AC) | 230 |
| Wattage | 21/22 |
| Width (inch) | 4-7/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Brass and composite air brake fittings meet all the parameters for DOT applications involving air brakes. Brass and composite fittings are made with a polymer body and brass screw threads. Holding mechanisms are lighter weight than all-brass fittings. These fittings do not rust or corrode and the internal sealing mechanisms create a strong, dependable seal and withstand high- and low-temperature extremes.
Feature
Standard Skeleton Axial Fan Fan Shape Skeleton Mounting Eye O.C. 4 1/8 in Height 4 7/16 in Depth 1 1/2 in Width 4 7/16 in CFM @ 0.000-In. SP 110/92 Watts 21/22 Voltage 230V AC 60/50 Hz 0.12/0.14 Amps Electrical Connection - Fans Lead Wires Sound Level 50/45 IP Rating IP20 Mounting Position Vertical or Horizontal Bearing Type Ball 3000/2600 RPM Motor Design Shaded Pole Motor Insulation Class A Thermal Protection Impedance Max Ambient Temp 158 Degrees FUlasan Produk
