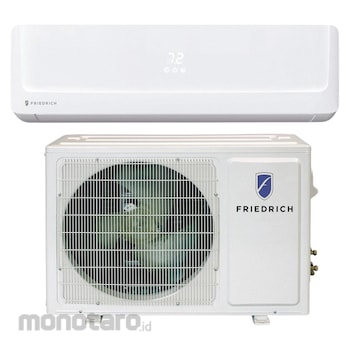

FRIEDRICH Single-Zone Ductless Mini-Split Air Conditioner Systems
#Grup produk P109440396
Spesifikasi
| UNSPSC | 40101701 |
|---|---|
| Air Flow (CFM) | 247/323/382/424 |
| Amps (A) | 2.9 |
| Compressor Type | Rotary/Inverter |
| Control Type | Electronic |
| Control Voltage (VDC) | 12 |
| Cooling Capacity (BtuH) | 9000 |
| Dehumidification Rate (pt/hour) | 1.9 |
| EER | 13.7 |
| For use with | FPHFW09A3B; FPHSR09A3A |
| Frequency (Hz) | 60 |
| HSPF (BTU/Wh) | 10.7 |
| Heater Power (W) | 720 |
| Heating Capacity - Heat Pump (BtuH) | 10500 |
| Heating Method | Heat Pump |
| Indoor Head Depth (inch) | 8-1/2 |
| Indoor Head Height (inch) | 11-1/8 |
| Indoor Head Mounting | Wall-Mount |
| Indoor Head Width (inch) | 33-7/8 |
| Indoor Sound Level (dBA) | 39/32/29/26 |
| Liquid Line Size (inch) | 1/4 |
| Max. Time Delay Fuse Amps (A) | 15 |
| Maximum Line Length Total System (ft) | 50 |
| Maximum Vertical Line Length (ft) | 33 |
| Min-Max Line Length Single Run (ft) | 50 |
| Number Of Indoor Units Supported | 1 |
| Number of Speeds | 4 |
| Operation Mode - HVAC | Cooling/Heating |
| Outdoor Depth (inch) | 9-1/2 |
| Outdoor Height (inch) | 19 |
| Outdoor Sound Level (dB) | 53 |
| Outdoor Width (inch) | 28-1/8 |
| Phase | 1 |
| Programming Capability | Daily Schedules |
| Refrigerant Precharge (oz) | 25 |
| Refrigerant Type | R-410A |
| Remote Control Functions | Full Function |
| Requires | Power and Communication Cable; Refrigerant Line Set for New Installation |
| SEER | 22.5 |
| Seacoast Corrosion Protection | Front and Rear Coil |
| Smart Connectivity | WiFi Control |
| Standards | AHRI; ETL |
| Suction Line Size (inch) | 3/8 |
| Voltage (V AC) | 208/230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These single-zone mini-split systems include either a wall-mount air handler or a condenser with a wall-mount air handler for standard installations. The air handler fastens to a wall (typically near the ceiling) to blow cooled or heated air into a single room or area. Compared to ceiling-mount systems, these wall-mount mini splits are typically easier to reach for installation, cleaning, and maintenance.
Feature
Single-Zone Split System with Heat Pump Average Coverage Area 700 to 1 000 sq ft Wall-Mount Number Of Indoor Units Supported 1 Operation Mode - HVAC Cooling/Heating 18 000 BtuH Heating Method Heat Pump Heating Capacity - Electric 19 000 BtuH Heating Capacity - Heat Pump 19 500 BtuH Heating Watts 1 638 W Air Flow 382/482/565/618 cfm 23.3 SEER 13 EER 11.6 BTU/Wh HSPF 6.3 A Amps 208/230V AC 1 Phase 60 Hz Hz Control Type Electronic Control Voltage 12V DCUlasan Produk
