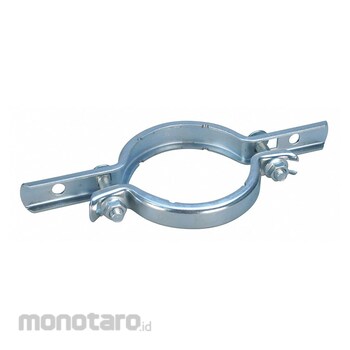

NVENT CADDY Riser Clamps for Tube & Pipe
#Grup produk P109437514
Spesifikasi
| UNSPSC | 31162906 |
|---|---|
| Bolt Diameter (inch) | 25/64 |
| Bolt Length (inch) | 25/64 |
| Clamp Material | Steel |
| Clamp Material Finish | Electrogalvanized |
| For Use On | Pipe |
| Mounting Hole Diameter (inch) | 0.52 |
| Overall Height (inch) | 1.5 |
| Overall Width (inch) | 1-1/2 |
| Standards | MSS SP-58, Type 8; WW-H-171, Type 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These riser clamps secure onto tube or pipe with attached fasteners and extend out at either side to provide extra support and distribute the load of the pipe.
Feature
Riser Clamp Bolt Diameter 25/64 in Bolt Length 25/64 in Clamp Material Steel Clamp Material Finish Electrogalvanized For Maximum Outside Diameter 5 9/16 in For Pipe Size 5 in Load Capacity 1 160 lb Mounting Hole Diameter 0.52 in Overall Height 1.5 in Overall Length 14.5 in Overall Width 1 1/2 in For Use On Pipe Standards MSS SP-58 Type 8 WW-H-171 Type 8 Bolt Center-to-Center Length 11 3/4 inUlasan Produk
