ANVIL Riser Clamps for Tube & Pipe
#Grup produk P109437499
Spesifikasi
| UNSPSC | 31162906 |
|---|---|
| Clamp Material | Steel |
| Maximum Operating Temperature (°F) | 450 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

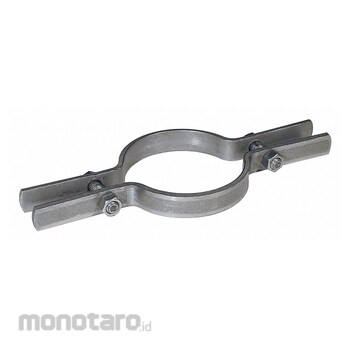

These riser clamps secure onto tube or pipe with attached fasteners and extend out at either side to provide extra support and distribute the load of the pipe.
Feature
Riser Clamp Bolt Diameter 1/2 in Bolt Length 1/2 in Clamp Material Steel Clamp Material Finish Not Applicable For Pipe Size 5 in Load Capacity 1 500 lb Mounting Hole Diameter 0.5 in Overall Length 13.75 in Overall Width 1 1/2 in For Use On Conduit Pipe Maximum Operating Temperature 450 Degrees F Standards ANSI/MSS SP-69 cUL Listed A-A-1192A Type 8 MSS SP-58 Type 8 UL Listed WW-H-171-E Type 8 Bolt Center-to-Center Length 8 in Cushion Material No Cushion Cushioned NoUlasan Produk
