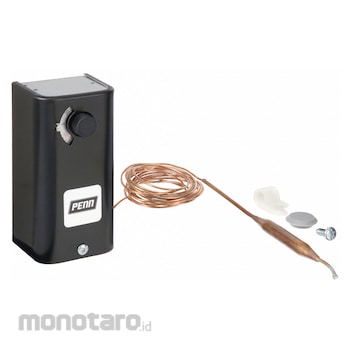

JOHNSON CONTROLS Remote-Bulb Sensor Temperature Controls
#Grup produk P109436472
Sebelum PPN:
Rp1.999.900 - Rp8.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Bulb Diameter (inch) | 3/8 |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Minimum Operating Temperature (°F) | -35 |
| Number of Poles | 1 |
| Overall Width (inch) | 2-1/8 |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These temperature controls are suitable for indoor heating, cooling, and refrigeration applications. They have enclosures that meet NEMA 1 for use indoors. These controls can be used with optional, closed tank fittings and immersion wells for immersion applications. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These temperature controls have a capillary tube and sensor that monitor and regulate the temperature of the ambient air, a liquid, or a gas at a distance away from the control. The sensing element is not affected by changes in barometric pressure or cross-ambient conditions to ensure accurate temperature regulation.
Feature
Line Volt Mechanical Tstat Thermostat Switch Type SPDT Thermostat Control Range -30 Degrees to 100 Degrees F Thermostat Voltage 120 to 277VAC Full Load Amps @ 120VAC 16A Full Load Amps @ 240VAC 8A Thermostat Programmable No Remote Sensing Capability Yes Thermostat Heating/Cooling Heating/Cooling Thermostat Item Line Voltage Mechanical Thermostat Remote Sensing Bulb Included Yes Switch Action Open/Close on Rise Number of Switches 1 Differential 3 Degrees to 12 Degrees FUlasan Produk
