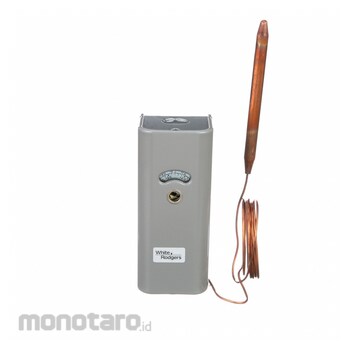

EMERSON Remote-Bulb Sensor Temperature Controls
#Grup produk P109436454
Sebelum PPN:
Rp2.099.900 - Rp2.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Bulb Diameter (inch) | 3/8 |
| Bulb Length (inch) | 5-1/4 |
| Changeover Type | Manual |
| Compatible System Type | Solenoid Refrigerant Valve; Zoning Systems |
| Contact Rating (VAC) | 120; 240 |
| Control Type | Concealed Dial |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Includes | Bulb Mounting Clip |
| Key Features | Top and Bottom Knockouts |
| Maximum Control Temperature (°F) | 90 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Control Temperature (°F) | -30 |
| Minimum Operating Temperature (°F) | -29 |
| Mounting Location | Indoor; Outdoor |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 0 |
| Number of Poles | 1 |
| Number of switches | 1 |
| Operating Temperature Range (°F) | -29 to 140 |
| Overall Depth (inch) | 2-5/8 |
| Overall Height (inch) | 5-3/8 |
| Overall Width (inch) | 2-3/8 |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Standards | CSA Certified; UL Listed |
| Temperature Scale | Fahrenheit/Celsius |
| Thermostat Type | Indoor Single-Stage Controls |
| Voltage (V AC) | 120 to 240 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Precision fittings connect with high-pressure (1000-3000 psi) pipe. Low-lead fittings are precision machined for leak-free connections between fittings and pipe, and include low-lead content rated for use with drinking water. Threaded connections use PTFE tape to secure seal.
Feature
Line Voltage Mechanical Thermostat Thermostat Switch Type SPST Thermostat Control Range -30 Degrees to 90 Degrees F Thermostat Voltage 120 to 240VAC Full Load Amps @ 240VAC 4.9A Remote Sensing Capability Yes Thermostat Heating/Cooling Cooling Remote Sensing Bulb Included Yes Switch Action Close on Rise Number of Switches 1 Sensor Type - Color Gray Enclosure Type Dustproof NEMA 1Ulasan Produk
