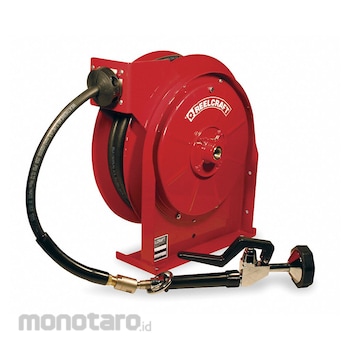

REELCRAFT Pre-Rinse, Garden & Potable Water Spring-Return Hose Reels
#Grup produk P109434191
Spesifikasi
| UNSPSC | 40142121 |
|---|---|
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion-Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Full Flow Swivel; Latch Cam Is Designed For Reliable Quie |
| Fitting Size (inch) | 3/8x3/8 |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Hose Capacity (ft) | 35 |
| Hose Capacity (in I.D.) | 3/8 |
| Hose Color | Black |
| Hose Cover Material | PVC |
| Hose End Configuration (in MNPT x in FNPT) | 3/8x3/8 |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size (inch) | 3/8 |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Female |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size (inch) | 3/8 |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. (inch) | 3/8 |
| Hose Length (ft) | 35 |
| Hose Outside Dia. (inch) | 5/8 |
| Hose Reel Primary Application | Pre-Rinse |
| Hose Reel Type | Ceiling; Floor; Vehicle; Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Includes | Lever-Operated Spray Valve |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Maximum Operating Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°F) | 32 |
| Mount Base Height (inch) | 11-19/32 |
| Mount Base Width (inch) | 4 |
| Mount Hole Diameter (inch) | 5/16 |
| Mounting Hole Center to Center Height (inch) | 9-3/4 |
| Mounting Hole Center to Center Width (inch) | 2-1/2 |
| Number of Guide Arms | Single Arm |
| Number of Mount Holes | 4 |
| Overall Dimensions LxWxH (in) | 14-1/4x6-1/8x14-3/8 |
| Overall Height (inch) | 14-3/8 |
| Overall Length (inch) | 14-1/4 |
| Overall Width (inch) | 6-1/8 |
| Pedestal Type | Single Pedestal |
| Reel Color | Red |
| Reel Diameter (inch) | 7 |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width (inch) | 6-1/8 |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size (inch) | 1/4 |
| Swivel Inlet Thread Size (in) | 1/4 - 18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size (inch) | 1/4 |
| Swivel Outlet Thread Size (in) | 1/4 - 18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Pre-rinse spring-retractable hose reels hold hoses that carry water to highly corrosive environments. These powder-coated steel reels include lever-operated spray valves and push-lock, field-replaceable hose end fittings. These single-pedestal, low-pressure (up to 500 psi) reels mount on a floor, wall, ceiling, or under a counter, and include an adjustable guide arm. Pre-rinse hose reels hold water hoses rated for hot water washdown and food prep in restaurants and commercial kitchens.
Feature
Spring Return Hose Reel Pre-Rinse 125 psi Hose Capacity 35 ft (3/8 in I.D.) Drive Type Spring Return Enclosed No Includes Hose Yes Hose Inside Dia 3/8 in Hose Length 35 ft Reel Material Carbon Steel Mounting Location Ceiling Floor Truck Wall Speed Limited Retraction No Overall Height 14 3/8 in Overall Length 14 1/4 in Overall Width 6 1/8 in Corrosion-Resistant Yes For Dual Hose No Hose Color Black Hose Cover Material PVC Hose Fitting A Gender MaleUlasan Produk
