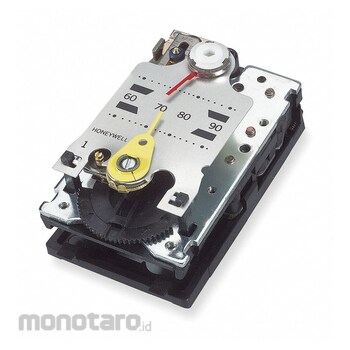

HONEYWELL Pneumatic Thermostat Retrofit Kits
#Grup produk P109432412
Spesifikasi
UNSPSC | 41112209 |
---|---|
Air Connection Type | Dual Barbed Fittings |
Air Consumption (sfcm) | 0.011 |
Air Flow Output | High Volume |
Air Restrictor Required | No |
Application | Heat or Cool |
Control Type | Exposed Setpoint Knob |
Cover Color | Silver |
Includes | Wall Plate |
Maximum Air Pressure | 25 |
Maximum Control Temperature (°F) | 90 |
Minimum Control Temperature (°F) | 59 |
Mounting Direction | Vertical |
Number of Dials | Single |
Number of Pipes | 2 |
Overall Depth (inch) | 1-5/8 |
Overall Height (inch) | 3-1/4 |
Overall Width (inch) | 2 |
Replaces Brand | Barber-Colman; Johnson Controls; Obsolete Honeywell (2-pipe); Powers; Robertshaw |
Temperature Scale | Fahrenheit |
Temperature Settings | Single Temperature |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
Retrofit kits convert existing pneumatic thermostats to a newer or competitive model when they become obsolete or unavailable. Also known as conversion or replacement kits, they're ideal for buildings with older construction as major renovation is required to update an existing pneumatic system to an electrical one. These kits avoid the costs of conversion as well as the potential health risks and disposal concerns of renovating older buildings. Retrofit kits typically include a thermostat, cover, and mounting and connecting parts. Most kits are brand-specific.
Feature
Pneumatic Thermostat Type 2 Pipe 1 Temperature Temperature Setting Range 60 to 90 Degrees Fahrenheit Contact Action DA Air Consumption 0.011 SCFM Maximum Safe Air Pressure 25 PSI Maximum Safe Operating Temperature 100 Degrees Fahrenheit Maximum Safe Storage Temperature 150 Degrees Fahrenheit Throttling Range 2 to 10 (Factory Set @ 4) Degrees Fahrenheit Height 3 1/4 Inches Width 2 Inches Depth 1 5/8 InchesUlasan Produk
