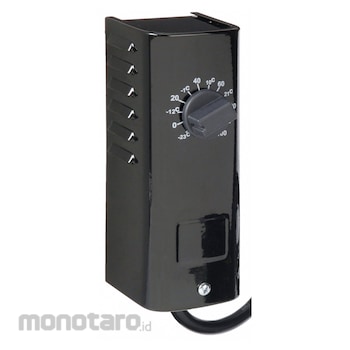

COLUMBUS ELECTRIC Plug-In Line-Voltage Thermostats
#Grup produk P109431112
Spesifikasi
UNSPSC | 41112209 |
---|---|
Application | Cool Only |
Compatible System Type | Portable Cooling Equipment |
Contact Rating (VAC) | 120 |
Contact Rating Resistive @ 120V (A) | 13.8 |
Control Type | Mechanical Selector Dial |
Display Type | Analog |
Electrical Connection Type | Corded |
Enclosure Color | Black |
Enclosure NEMA Rating | Not Rated |
Hose Length Included (ft) | 6 Cord with Piggyback Plug; Mount with Suspension Chain or Wire |
Housing Color | Black |
Housing Material | Steel |
Inductive Amps @ 120V (A) | 13.8 |
Key Pad Lockout | No |
Maximum Control Temperature (°F) | 100 |
Minimum Control Temperature (°F) | -10 |
Overall Depth (inch) | 2 |
Overall Height (inch) | 5-1/2 |
Overall Width (inch) | 2-1/2 |
Programming Capability | Not Programmable |
Sensor Type | Bi-Metal |
Standards | CSA; UL |
Switch Action | Close on Rise |
Switch Type | SPST |
System Settings | Cool-Off |
Temperature Differential (°F) | 6° to 8 |
Temperature Scale | Fahrenheit/Celsius |
Temperature settings per day | Manual Adjust |
Thermostat Type | Portable Cooling |
Voltage (V AC) | 110 to 125 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
These thermostats are compatible with portable cooling equipment, such as air conditioners, refrigeration units, and freezers, and provide on/off temperature control. These thermostats have an adjustable setpoint range. They're nonprogrammable, so the temperature setting stays the same until it's readjusted. The cooling equipment plugs into the thermostats, which then plug into a wall outlet. Thermostats include a prewired extension cord. Units with bulb sensors provide remote sensing capabilities.
Feature
Portable Cooling Thermostat Thermostat Control Range -10 Degrees to 100 Degrees F Thermostat Voltage 110 to 125V AC Thermostat Switch Type SPST Inductive Amps @ 120V 13.8 A Switch Action Close on Rise Differential 6 to 8 Degrees F Height 5 1/2 in Width 2 1/2 in Depth 2 in Sensor Type Bi-Metal Color Black Enclosure Type Steel For Use With Portable Cooling EquipmentUlasan Produk
