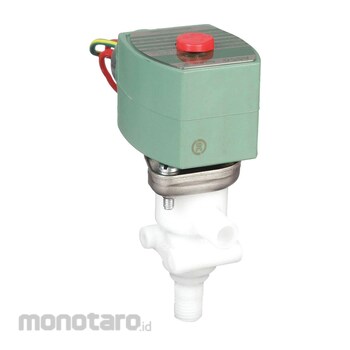

REDHAT Plastic Solenoid Valves
#Grup produk P109430955
Spesifikasi
| UNSPSC | 40141605 |
|---|---|
| Application | Damper Control and Water Applications. 1/4 in Compression Fitting Ends for Metal or Plastic Tube.; For Dispensing |
| Coefficient of Volume | 0.07 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections (in) | 1/2 Conduit w/18 Wire Leads |
| Environmental Rating - Valves | IndoorOutdoorWashdown |
| Frequency (Hz) | 50 to 60 |
| Manufacturer Part Number | 8360G071 |
| Max. Operating Pressure Differential Air/Inert Gas | 100 |
| Max. Operating Pressure Differential Water | 100 |
| Maximum Fluid Temperature (°F) | 130 |
| Min. Operating Pressure Differential | 0 |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Operation | Direct Acting |
| Orifice Dia. (inch) | 1/16 |
| Overall Height (inch) | 4-3/8 |
| Overall Length (inch) | 2-1/4 |
| Overall Width (inch) | 1-15/16 |
| Pipe Size - Valves (inch) | 1/4 |
| Safe Working Water Pressure | 100 |
| Seal Material - Valves | Buna-N |
| Valve Configuration | Universal |
| Valve Ways and Positions | 3-Way/2-Position |
| Voltage (V AC) | 120 |
| Wattage (W) | 9.1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Featuring an innovative Fail Dry design that provides a visual warning of seal malfunction, these 2-way valves can handle pressure drain or vacuum applications without pressure to aid in opening the valve. The bellows barrier-type dynamic seal helps prevent fugitive emissions from leaking. The rugged thermoplastic body resists corrosion and has no wetted metal parts. Use these valves in severe service applications with most liquids, including acids, caustics, chlorine solutions, solvents, and ultra-pure fluids.
Feature
Solenoid Valve Plastic Solenoid Valve Valve Ways and Positions 3-Way/2-Position Universal Media - Valves Air Inert Gases Water Pipe Size - Valves 1/4 in Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Air/Inert Gas 100 psi Max Operating Pressure Differential Water 100 psi Environmental Rating - Valves Indoor Outdoor Washdown Voltage 120V AC Coefficient of Volume 0.07 Coil Insulation Class F Seal Material - Valves Buna-N Orifice Dia 1/16 inUlasan Produk
