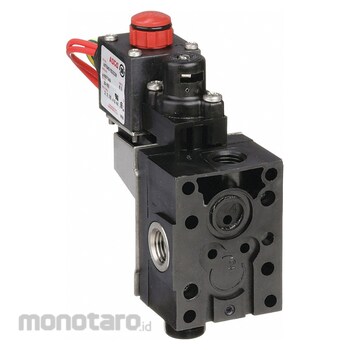

REDHAT Pilot Solenoid Valves
#Grup produk P109430654
Spesifikasi
| UNSPSC | 40141605 |
|---|---|
| Body Material - Valves | Nylon |
| Coefficient of Volume | 0.5 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connection (in) | 18 Leads |
| Environmental Rating - Valves | Indoor; Outdoor |
| Frequency (Hz) | 50/60 |
| Max. Operating Pressure Differential Air/Inert Gas | 150 |
| Maximum Fluid Temperature (°F) | 104 |
| Maximum Operating Pressure Differential | 150 |
| Min. Operating Pressure Differential | 20 |
| Mounting | NAMUR |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Orifice Dia. (inch) | 1/4 |
| Overall Height (inch) | 4-19/64 |
| Overall Length (inch) | 4-29/32 |
| Overall Width (inch) | 2-7/64 |
| Pipe Size - Valves (inch) | 1/4 |
| Seal Material - Valves | NBR |
| Standards | CSA Certified; UL Recognized Component General Purpose Valve |
| Valve Configuration | Universal |
| Valve Ways and Positions | 3-Way/2-Position; 4-Way/2-Position; 5-Way/2-Position |
| Voltage (V AC) | 120 |
| Wattage (W) | 6.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Universal pilot solenoid valves are used with a pneumatic actuator and can be set as normally closed or normally open, which is ideal when the configuration will be selected at the time of installation. When set to normally closed, they remain closed until they are actuated to open and allow flow. When set to normally open, they remain open to allow flow until they are actuated to close and stop flow. These valves can be mounted in any position and will vent air from the spring side of the actuator to help prevent corrosion. Pilot solenoid valves are commonly used to control flow in hydraulic systems, control cylinders, fluid power motors, and other process control applications.
Feature
Pilot Solenoid Valve Pilot Solenoid Valve Valve Ways and Positions 3-Way/2-Position 4-Way/2-Position 5-Way/2-Position Valve Configuration Universal Media - Valves Air Inert Gases Pipe Size - Valves 1/4 in Min Operating Pressure Differential 20 psi Max Operating Pressure Differential Air/Inert Gas 150 psi Indoor Outdoor Voltage 120V AC Coefficient of Volume 0.5 Body Material - Valves Nylon Coil Insulation Class F Seal Material - Valves NBR Orifice Dia 1/4 inUlasan Produk
