Continental Petroleum Hose Assemblies
#Grup produk P109430511
Spesifikasi
| UNSPSC | 40142007 |
|---|---|
| Bend Radius (inch) | 4 |
| Burst Pressure | 600 |
| Compatible Chemicals | Automatic Transmission Fluid; Deionized Water; Diesel Fuel; Ethyl (Ethanol); Fresh Water; Gasoline; Heptane; Hexane; Kerosene; Motor Oil; Salt Water |
| Hose Color | Black |
| Hose Configuration | Coupled Assembly |
| Hose Cover Material | Nitrile |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size (inch) | 1-1/2 |
| Hose Fitting A Type | MNPSM |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size (inch) | 1-1/2 |
| Hose Fitting B Type | FNPSM |
| Hose Inside Dia. (inch) | 1-1/2 |
| Hose Length (ft) | 50 |
| Hose Outside Dia. (inch) | 2 |
| Hose Reinforcement Material | Carbon Steel |
| Hose Tube Material | Nitrile |
| Max. Working Pressure @ 70 F | 150 |
| Safety Factor | 4:1 |
| Standards | 3-A; FDA; USDA |
| Static Control Wire | No |
| Temperature Range (°F) | -35 to 200 |
| Vacuum Rating (in.Hg) | 29 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

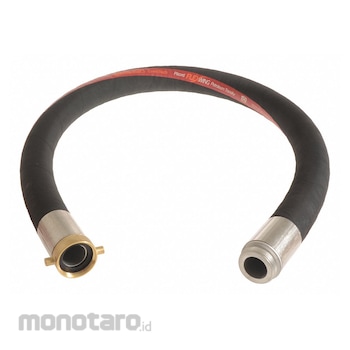

These nitrile blend petroleum hose assemblies with corrugated nitrile blend covers are designed for suction and discharge of oil and petroleum products. The corrugated cover provides maximum flexibility, and the hoses have a static wire that dissipates static charge to help prevent sparks that can ignite fumes or material inside the hose. Nitrile provides excellent resistance to oils and moderate resistance to aromatics. These hoses are used in tank-truck, oil- and gas-exploration, waste-hauling, paper- and pulp-industry, shipbuilding, and well-service applications.
Feature
Item Petroleum Transfer Hose Hose Inside Dia 1 1/2 in Hose Outside Dia 2 in Hose Length 50 ft Hose Tube Material Nitrile Hose Cover Material Nitrile Hose Reinforcement Type Helix Hose Reinforcement Material Carbon Steel Hose Color Black Burst Pressure 600 psi Max Working Pressure @ 70 F 150 psi Vacuum Rating 29.00 in Hg Safety Factor 4 1 Temp Range -35 Degrees to 200 Degrees F Standards 3-A FDA USDA Bend Radius 4 in Hose Configuration Coupled AssemblyUlasan Produk
