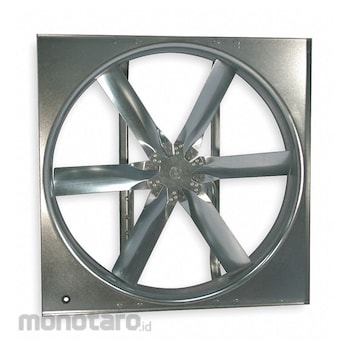

DAYTON Panel Supply Fans
#Grup produk P109430478
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp10.999.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101604 |
|---|---|
| Assembled | Unassembled |
| Blade Material | Steel |
| For Maximum Static Pressure (Dependent on Motor) (in wg) | 0.75 |
| For Minimum Motor Horsepower (hp) | 1/4 |
| Frame Finish | Zinc-Plated |
| Frame Material | Steel |
| Includes Drive Package with Motor | No |
| Method of Construction | Stamped |
| Number of Blades | 6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Belt-drive panel supply fans allow users to adjust the fans' blade speed and airflow. Belts connect the fans' motors to their fan blades. Belt-drive fans are better suited than direct-drive fans for high airflow (≥2000 cfm) or high static pressure (≥0.50") applications. These fans do not come with a drive package, so users can select the compatible motor, pulleys, belts, and bushings that meet the specific demands of their application or use ones that they have on hand.
Feature
Supply Fan Assembled Unassembled Blade Diameter 30 in Blade Material Steel Frame Material Steel For Maximum Motor Horsepower 1 hp For Maximum Motor Speed 968 RPM For Minimum Motor Horsepower 1/4 hp For Minimum Motor Speed 621 RPM Maximum Airflow 11 061 cfm Maximum Static Pressure 0.75 in wg Minimum Airflow 7 096 cfm For Cut-Out Height 32 1/2 in For Cut-Out Width 32 1/2 in For Cut-Out Diameter 32 1/2 in Guard Type None Method of Construction Stamped Number of Blades 6Ulasan Produk
Tidak ada ulasan
