HALSEY TAYLOR On-Wall Drinking Fountains & Bottle Fillers
#Grup produk P109428455
Spesifikasi
| UNSPSC | 48101710 |
|---|---|
| ADA Compliant | Yes |
| Antimicrobial | No |
| Basin Material | Stainless Steel |
| Bi-Level Field Adjustable | Yes |
| Bubbler Finish | Chrome Plated |
| Compressor Horsepower (hp) | 1/5 |
| Cooling Capacity (gph) | 8 @50°F |
| Displayed Brand | HALSEY TAYLOR |
| Drain Outside Diameter (inch) | 1-1/2 |
| Environment | Indoor |
| Features | Barrier Free; Electronic Bubbler Push Bars; Hermetically Sealed Refrigeration System |
| Fountain Actuation | Front Pushbar/Side Pushbar |
| Full Load Current (A) | 5 |
| Housing Color | Gray |
| Housing Finish | Platinum Vinyl |
| Includes Back Panel | No |
| Includes Pet Bowl | No |
| Includes Water Filter | No |
| Manufacturer Part Number | HTVZ8BLPV-NF |
| Maximum Cold Water Temperature (°F) | 50 |
| Maximum Constant Stream Pressure | 105 |
| Minimum Constant Stream Pressure | 20 |
| Minimum Supply Line Pressure | 40 |
| Mounting Hole Diameter (inch) | 7/16 |
| Mounting Location | Wall Surface Mount |
| Number of Bubblers | 1 |
| Number of Mounting Holes | 6 |
| Operating Voltage (V AC) | 115 |
| Overall Depth (inch) | 19 |
| Overall Height (inch) | 25-3/8 |
| Overall Width (inch) | 36-3/4 |
| Power Consumption (W) | 370 |
| Power Source | Electric Corded |
| Refrigerant Type | R134A |
| Refrigeration | Refrigerated |
| Standards | ADA and ICC A117.1; ASME A112.19.3/CSA B45.4; Buy American Act; CAN/CSA C22.2 No. 120; NSF/ANSI 372; NSF/ANSI 61; UL 399 |
| Station Type | Bi-Level Fountain |
| Sub Brand | HALSEY TAYLOR |
| Temperature Adjustment | Factory Set but Adjustable |
| Vandal Resistant | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

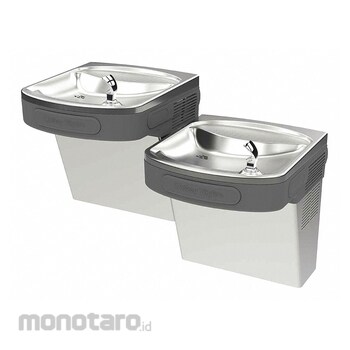

These bi-level drinking fountains have two stations arranged at different heights.
Feature
Two-Level Drinking Fountain Station Type Bi-Level Fountain Fountain Actuation Front Pushbar/Side Pushbar Includes Water Filter No ADA Compliant Yes Cooling Capacity 8 gph @ 50 Degrees F Housing Color Gray Housing Finish Platinum Vinyl Overall Height 25 3/8 in Overall Depth 19 in Overall Width 36 3/4 in Mounting Location Wall Surface Mount Bi-Level Field Adjustable Yes Includes Pet Bowl No Refrigeration Refrigerated Power Source Electric Corded Vandal Resistant NoUlasan Produk
